    Massey Ferguson 235

    Massey Ferguson 235 tractor photo  I&T Manual: Massey 230, 235, 240, 245, 250
    I&T Shop Manual
    1975 - 1976
    Utility tractor
    Previous model:Massey Ferguson 135
    Next model:Massey Ferguson 245






    Production:

    Manufacturer:Massey Ferguson
    Original price (USD):$6,900 (1976)


    Variants:

    orchard:low-profile
    vineyard:narrow low-profile


    Massey Ferguson 235 Engines:

       Perkins 2.5L 3-cyl diesel
       Continental 2.4L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:14 gal [53.0 L]
    Hydraulic system:8 gal [30.3 L]


    3-Point Hitch:

    Rear Type:I


    Power Take-off (PTO):

    Rear PTO:live (two-stage clutch)
     independent (optional)
    Rear RPMs:540
    Engine RPMs:540@1683


    Dimensions & Tires:

    Wheelbase:74.5 inches [189 cm]
    Weight:3620 to 5860 pounds
    Front tire:6.00-16
    Rear tire:13.6-28
    full dimensions and tires ...

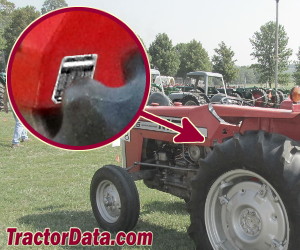

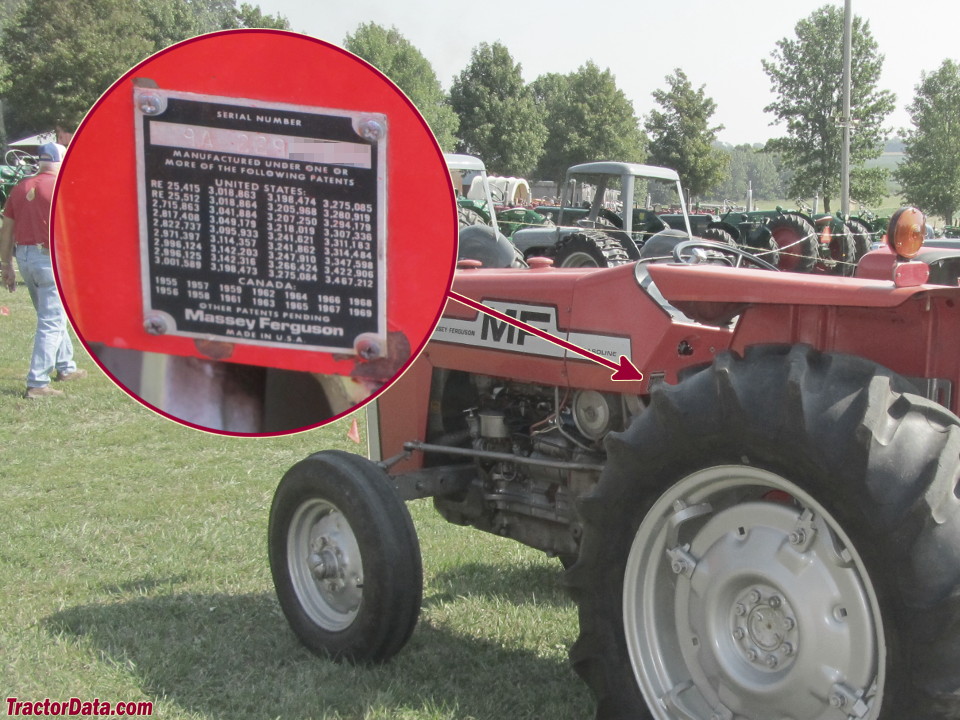

    235 Serial Numbers:

    1975: 9A207681
    1976: 9A232539

    how to read serial numbers...



    Massey Ferguson 235 Power:

    Drawbar (claimed):35 hp [26.1 kW]
    PTO (claimed):42 hp [31.3 kW]
    Drawbar (tested):34.95 hp [26.1 kW]
    PTO (tested):42.39 hp [31.6 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Differential lock:pedal-activated (optional)
    Steering:manual
     power assist (optional)
    Brakes:differential mechanical expanding shoe
    Cab:Open operator station. Optional two-post ROPS and canopy.


    Hydraulics:

    Capacity:8 gal [30.3 L]
    Pressure:2300 psi [158.6 bar]
    Valves:0 to 2
    Pump flow:10 gpm [37.9 lpm]
     4.5 gpm [17.0 lpm] (3pt hitch)
    Total flow:19.5 gpm [73.8 lpm]
    Steering flow:5.0 gpm [18.9 lpm]


    Electrical:

    Charging system:alternator
    Charging amps:37


    Battery:

    Number:1
    Volts:12
