Massey Ferguson 235 Tests


Massey Ferguson 235 tractor photo
1975 - 1976
200 Series
Utility tractor
135
Series:230235245
Nebraska Tractor Test 1187

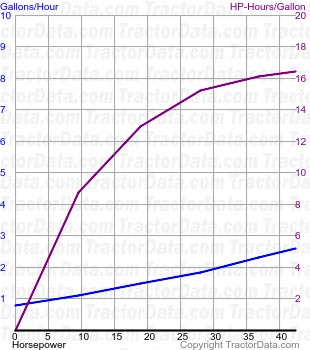

235 fuel use from test 1187
Nebraska Tractor Test 1187
Diesel 8-speed 2WD
September 4 - 18, 1975
Link: Nebraska Tractor Test 1187 file
PTO performance
Power at rated engine speed:42.39 hp
31.6 kW
Fuel use:2.6 gal/hour
9.8 l/hour
Power at rated PTO speed:35.29 hp
26.3 kW
Fuel use:2.1 gal/hour
7.9 l/hour
Drawbar performance
Max power:34.95 hp
26.1 kW
Fuel use:2.5 gal/hour
9.5 l/hour
Gear 4L used for power test.
Max pull:4,281 lbs
1941 kg
Gear 2L used for pull test.
Nebraska Tractor Test 1194

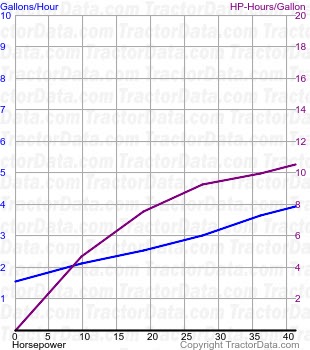

235 fuel use from test 1194
Nebraska Tractor Test 1194
Gasoline 8-speed 2WD
October 23 - November 3, 1975
Link: Nebraska Tractor Test 1194 file
PTO performance
Power at rated engine speed:41.13 hp
30.7 kW
Fuel use:3.9 gal/hour
14.8 l/hour
Power at rated PTO speed:33.87 hp
25.3 kW
Fuel use:3.2 gal/hour
12.1 l/hour
Drawbar performance
Max power:33.90 hp
25.3 kW
Fuel use:3.9 gal/hour
14.8 l/hour
Gear 4L used for power test.
Max pull:4,294 lbs
1947 kg
Gear 2L used for pull test.
