Massey Ferguson 235 Engine


Massey Ferguson 235 tractor photo
1975 - 1976
200 Series
Utility tractor
135
Series:230235245
Engines overview
Perkins 2.5L 3-cyl diesel
Continental 2.4L 4-cyl gasoline
Engine Detail
Perkins AD3.152
diesel
3-cylinder
liquid-cooled
Displacement:152 ci
2.5 L
Bore/Stroke:3.60x5.00 inches
91 x 127 mm
Fuel system:direct injection
Air cleaner:dual dry element
Compression:16.5:1
Rated RPM:2250
Starter volts:12

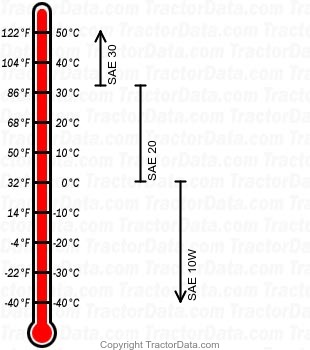

Oil capacity:6 qts
5.7 L
Coolant capacity:10.5 qts
9.9 L
Engine Detail
Continental Z145
gasoline
4-cylinder
liquid-cooled
Displacement:145 ci
2.4 L
Bore/Stroke:3.375x4.062 inches
86 x 103 mm
Air cleaner:dual dry element
Compression:7.4:1
Rated RPM:2000
Starter volts:12
Oil capacity:6 qts
5.7 L
Coolant capacity:10.5 qts
9.9 L
