Massey Ferguson 135


Massey Ferguson 135 tractor photo
1964 - 1975
100 Series
Utility tractor
Series map:
130
135
150
30.0hp
45.5hp
45.5hp
Production
ManufacturerMassey Ferguson
Utility tractor
Built in Detroit, Michigan, USA
Original price was $4,385 in 1975
Variants
135 Deluxepremium
135 Specialeconomy
2135industrial tractor
Massey Ferguson 135 Engines
Perkins 2.5L 3-cyl diesel
Continental 2.4L 4-cyl gasoline
Perkins 2.5L 3-cyl gasoline
Engine details ...
Massey Ferguson 135 Transmissions
6-speed
8-speed
12-speed partial power shift
Transmission details ...
Massey Ferguson 135 Power
Engine45.5 hp
33.9 kW
Drawbar (claimed)33 hp
24.6 kW
PTO (claimed)38 hp
28.3 kW
Drawbar (tested)33.06 hp
24.7 kW
PTO (tested)37.82 hp
28.2 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringmanual
 power (optional)
Mechanical drum brakes
Open operator station.
Capacity
Diesel Fuel10.2 gal
38.6 L
Gas Fuel13.7 gal
51.9 L
Hydraulic system8 gal
30.3 L
Hydraulics
Capacity8 gal
30.3 L
Pressure2800 psi
193.1 bar
Pump flow4.5 gpm
17.0 lpm
Total flow4.8 gpm
18.2 lpm
Oil type
MF-1129
Tractor hitch
Rear TypeI
Rear lift2,850 lbs
1292 kg
Power Take-off (PTO)
Rear PTOtransmission
 live *Optional, with two-stage clutch.
Clutch228.6mm dry disc
Rear RPM540/ground (1.375)
Engine RPM540@1700
Dimensions & Tires
Wheelbase72 inches
182 cm
Weight2940 to 3130 pounds
Front tire5.50-16
Rear tire12.4/11-28
Full dimensions and tires ...
135 Serial Numbers
1964641000001
1965641001909
1966641014871
19679A10001
19689A39836
19699A63158
19709A87325
19719A107519
19729A128141
19739A152025
19749A182761
19759A207681

FAQ: How to read a serial number table.
135 Serial Location

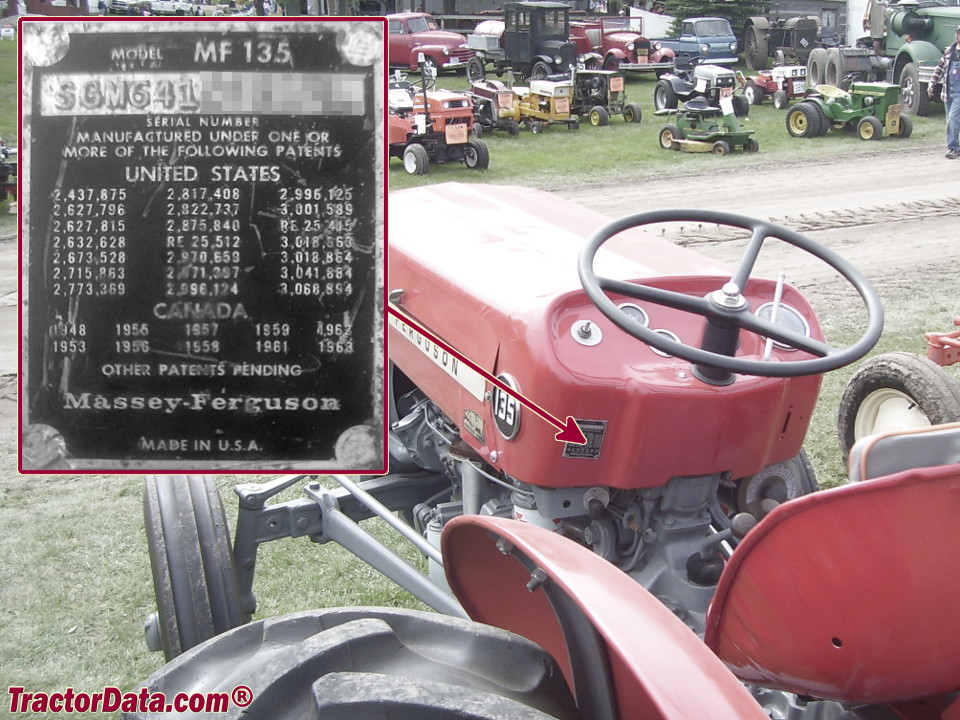

Massey Ferguson 135 serial number location
Serial number on the instrument panel below the steering column. Serial number may also be on the right side of the engine, below the battery tray.
Electrical
Groundnegative
Charging systemgenerator
Charging amps10
Battery volts12
Gas Battery AH41
Diesel Battery AH95
References
135 references literature
MF 135 / MF 150 / MF 165 published in 1975, by Massey Ferguson
MF 135 / MF 150 Tractors published in 1972, by Massey Ferguson
MF 135 Tractor published in 1964, by Massey Ferguson
Operator's Manual MF 135 Tractor (1448 077 M2) published in 1969
Installation & Operation of Basic & Auxiliary Hydraulic Systems (690 562 M2) published in 1968
