Massey Ferguson 35


Massey Ferguson 35 tractor photo
1960 - 1965
Utility tractor
Series map:
35
41.2hp*
*Estimated engine power for comparison only.
Production
ManufacturerMassey Ferguson
Utility tractor
Built in Detroit, Michigan, USA
Original price was $2,529 in 1963
The gasoline engine was available after 1961.
Variants
35ag tractor
35 Utilityindustrial
35 Turflow-profile
Massey Ferguson 35 Engines
Perkins 2.5L 3-cyl diesel
Continental 2.2L 4-cyl gasoline
Engine details ...
Massey Ferguson 35 Transmissions
6-speed gear
12-speed partial power shift
Transmission details ...
Massey Ferguson 35 Power
Plows3
Drawbar (tested)32.13 hp
24.0 kW
PTO (tested)37.04 hp
27.6 kW
Performance test details ...
Mechanical
Two-wheel drive
Differential lockmechanical rear OptOptional
Steeringmanual recirculating ball
Independent manual shoe/drum brakes
Open operator station.
Capacity
Fuel13.9 gal
52.6 L
Hydraulic system8 gal
30.3 L
Hydraulics
Capacity8 gal
30.3 L
Pressure2800 psi
193.1 bar
Pump flow3.5 gpm
13.2 lpm
Tractor hitch
Rear TypeI
Power Take-off (PTO)
Rear PTOtransmission
 two-stage clutch OptOptional
Rear PTO Typeground/540 (1.375)
Engine RPM540@1700
Dimensions & Tires
Wheelbase72 inches
182 cm
Weight2982 to 3559 pounds
Front tire5.50-16
Rear tire10-28
Full dimensions and tires ...
35 Serial Number Location

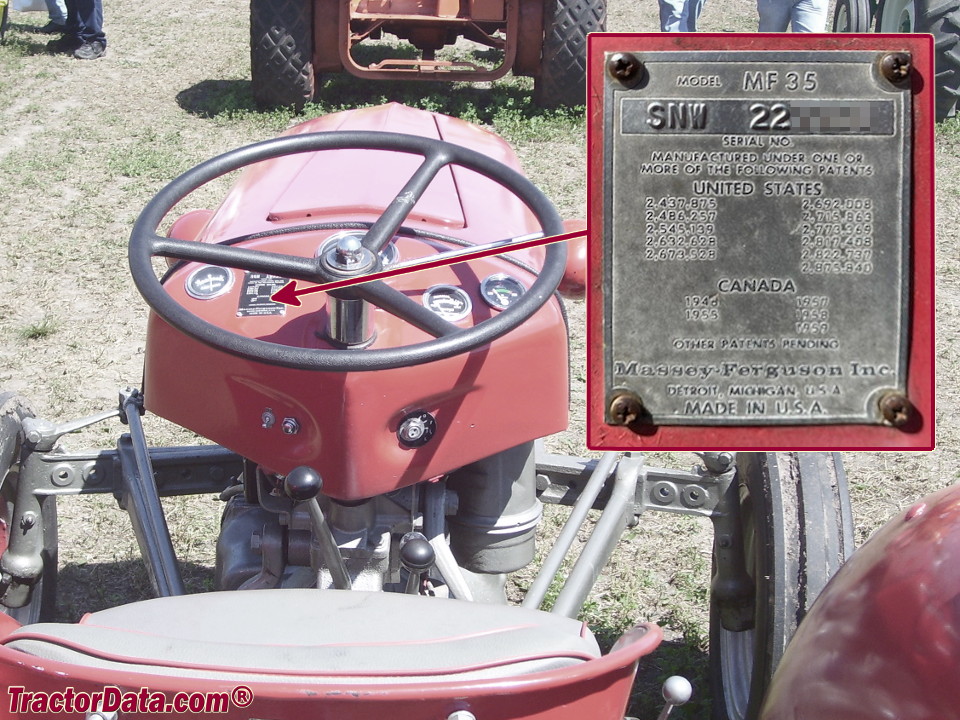

Massey Ferguson 35 serial number location
Serial number plate on the dashboard of the Massey Ferguson 35.
35 Serial Numbers
1960204181
1961211071
1962222207
1963235123
1964247605

FAQ: How to read a serial number table.
Electrical
Charging systemgenerator
Charging amps12
Battery volts12
Gas Battery AH40
Diesel Battery AH96
References
35 references literature
Loaders published in 1963, by Massey Ferguson
New 35 Diesel published in 1960, by Massey Ferguson
MF 35 published in 1961, by Massey Ferguson
Owner's Manual MF 35 Tractor (690 495 M3)
Installation & Operation of Basic & Auxiliary Hydraulic Systems (690 562 M2) published in 1968
