Tractors > Ford > 8830

Ford 8830 Engine



Ford 8830 tractor photo
1990 - 1993
8030 Series
Row-Crop tractor
Series map:
8730
8830
155.6hp*
188.9hp*
*Estimated engine power for comparison only.
Engine Detail
Ford
intercooled turbocharged diesel
6-cylinder
liquid-cooled
Displacement401 ci
6.6 L
Bore/Stroke4.40x4.40 inches
112 x 112 mm
Compression15.6:1
Rated RPM2200
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity22.8 qts
21.6 L
 24.4 qts (with heater)
23.1 L
Intake valve clearance0.014-0.016 inches (cold)
0.356 mm
Exhaust valve clearance0.017-0.019 inches (cold)
0.432 mm
Engine Oil

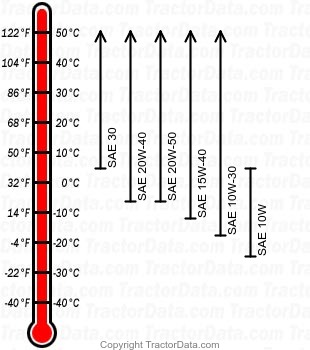

8830 diesel engine oil chart
Oil capacity19.6 qts
18.5 L
