Ford 8730 Engine


Ford 8730 tractor photo
1990 - 1993
8030 Series
Row-Crop tractor
TW-25
Series:863087308830
Engine Detail
Ford
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:401 ci
6.6 L
Bore/Stroke:4.40x4.40 inches
112 x 112 mm
Compression:15.6:1
Rated RPM:2200
Firing order:1-5-3-6-2-4
Coolant capacity:22 qts
20.8 L
 23.6 qts
22.3 L (with heater)
Intake valve clearance:0.014-0.016 inches
0.356 mm (cold)
Exhaust valve clearance:0.017-0.019 inches
0.432 mm (cold)
Engine Oil

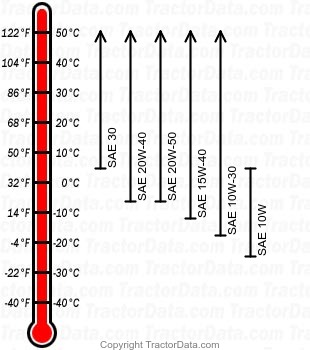

8730 diesel engine oil chart
Oil capacity:19.6 qts
18.5 L
