New Holland 4630 Tests
|
|
Note: the New Holland model 4630 is the same as the Ford 4630. The following data is from the 4630 listing. |
| Tractor Tests | |
| OECD 1645: 3.3L diesel 8-speed 4WD | |
| OECD 1703: 3.1L diesel 16-speed 4WD |
| OCED Tractor Test 1645 | |||
| |||
| OCED Tractor Test 1645 | |
| 3.3L diesel 8-speed 4WD April 30 - May 3, 1991 Link: OCED Tractor Test 1645 file | |
| PTO performance | |
| Power at rated engine speed | 55.41 hp 41.3 kW |

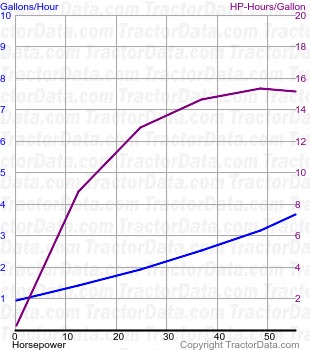

| Fuel use | 3.7 gal/hour 14.0 l/hour |
| Power at rated PTO speed | 50.77 hp 37.9 kW |
| Fuel use | 3.2 gal/hour 12.1 l/hour |
| Drawbar performance | |
| Max power | 46.47 hp 34.7 kW |
| Fuel use | 3.7 gal/hour 14.0 l/hour |
| Gear 2H used for power test. | |
| Max pull | 4,833 lbs 2192 kg |
| Gear 3L used for pull test. | |
| OCED Tractor Test 1703 | |||
| |||
| OCED Tractor Test 1703 | |
| 3.1L diesel 16-speed 4WD October 23 - 27, 1995 Link: OCED Tractor Test 1703 file | |
| PTO performance | |
| Power at rated engine speed | 56.82 hp 42.4 kW |

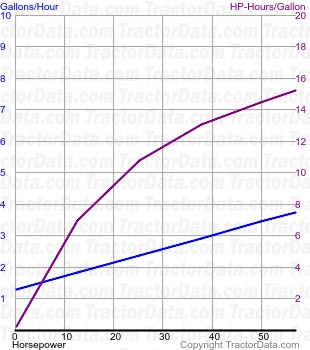

| Fuel use | 3.7 gal/hour 14.0 l/hour |
| Power at rated PTO speed | 53.12 hp 39.6 kW |
| Fuel use | 3.2 gal/hour 12.1 l/hour |
| Drawbar performance | |
| Max power | 48.54 hp 36.2 kW |
| Fuel use | 3.7 gal/hour 14.0 l/hour |
| Gear 6L used for power test. | |
| Max pull | 5,672 lbs 2572 kg |
| Gear 3L used for pull test. | |
