New Holland 5030 Tests

New Holland 5030 tractor photo
1992 - 1998
30 Series
Utility tractor
Series map:
*Estimated engine power for comparison only.

Note: the New Holland model 5030 is the same as the Ford 5030. The following data is from the 5030 listing.
OCED Tractor Test 1704

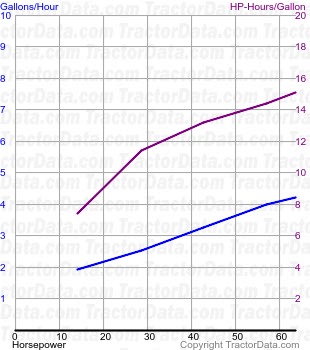

5030 fuel use from test 192
OCED Tractor Test 1704
Diesel 16-speed 4WD
October 4 - 25, 1995
Link: OCED Tractor Test 1704 file
PTO performance
Power at rated engine speed63.56 hp
47.4 kW
Fuel use4.2 gal/hour
15.9 l/hour
Power at rated PTO speed56.17 hp
41.9 kW
Fuel use3.6 gal/hour
13.6 l/hour
Drawbar performance
Max power53.84 hp
40.1 kW
Fuel use4.2 gal/hour
15.9 l/hour
Gear 6L used for power test.
Max pull7,762 lbs
3520 kg
Gear 3L used for pull test.
