New Holland 3930 Tests


New Holland 3930 tractor photo
1990 - 2002
30 Series
Utility tractor
Series map:
3430
3930
4630
46.0hp
50.0hp*
60.0hp

Note: the New Holland model 3930 is the same as the Ford 3930. The following data is from the 3930 listing.
Tractor Tests
OECD 1644: 3.3L diesel 8x2 speed 4WD
OECD 1341: diesel 8x8 speed
OECD 1701: 3.1L diesel 8x2 speed 4WD
OECD 1702: 3.1L diesel 8x8 speed 4WD
OECD 1702S: 3.1L turbo-diesel 8x8 speed 4WD
OCED Tractor Test 1644

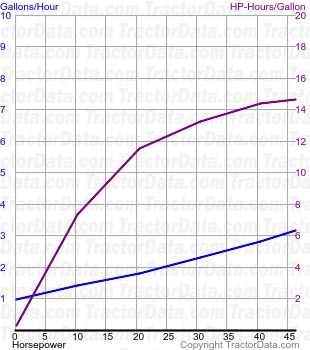

3930 fuel use from test 82
OCED Tractor Test 1644
3.3L diesel 8x2 speed 4WD
April 8 - 25, 1991
Link: OCED Tractor Test 1644 file
PTO performance
Power at rated engine speed45.85 hp
34.2 kW
Fuel use2.8 gal/hour
10.6 l/hour
Power at rated PTO speed43.65 hp
32.5 kW
Fuel use2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power38.18 hp
28.5 kW
Fuel use2.9 gal/hour
11.0 l/hour
Gear 1H used for power test.
Max pull4,807 lbs
2180 kg
Gear 2L used for pull test.
OCED Tractor Test 1341
Diesel 8x8 speed
PTO performance
Max power44.3 hp
33.0 kW
Fuel use2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power35.1 hp
26.2 kW
OCED Tractor Test 1701

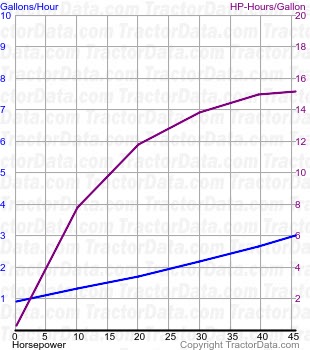

3930 fuel use from test 189
OCED Tractor Test 1701
3.1L diesel 8x2 speed 4WD
October 17 - 27, 1995
Link: OCED Tractor Test 1701 file
PTO performance
Power at rated engine speed45.58 hp
34.0 kW
Fuel use3.0 gal/hour
11.4 l/hour
Power at rated PTO speed41.22 hp
30.7 kW
Fuel use2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power37.33 hp
27.8 kW
Gear 1H used for power test.
Max pull5,026 lbs
2279 kg
Gear 2L used for pull test.
OCED Tractor Test 1702

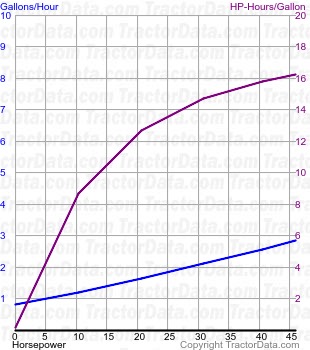

3930 fuel use from test 190
OCED Tractor Test 1702
3.1L diesel 8x8 speed 4WD
October 2 - 27, 1995
Link: OCED Tractor Test 1702 file
PTO performance
Power at rated engine speed46.23 hp
34.5 kW
Fuel use3.2 gal/hour
12.1 l/hour
Power at rated PTO speed41.81 hp
31.2 kW
Fuel use2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power37.19 hp
27.7 kW
Fuel use3.1 gal/hour
11.7 l/hour
Gear 1H used for power test.
Max pull4,480 lbs
2032 kg
Gear 3L used for pull test.
OCED Tractor Test 1702S
3.1L turbo-diesel 8x8 speed 4WD
1998
PTO performance
Power at rated engine speed52.54 hp
39.2 kW
