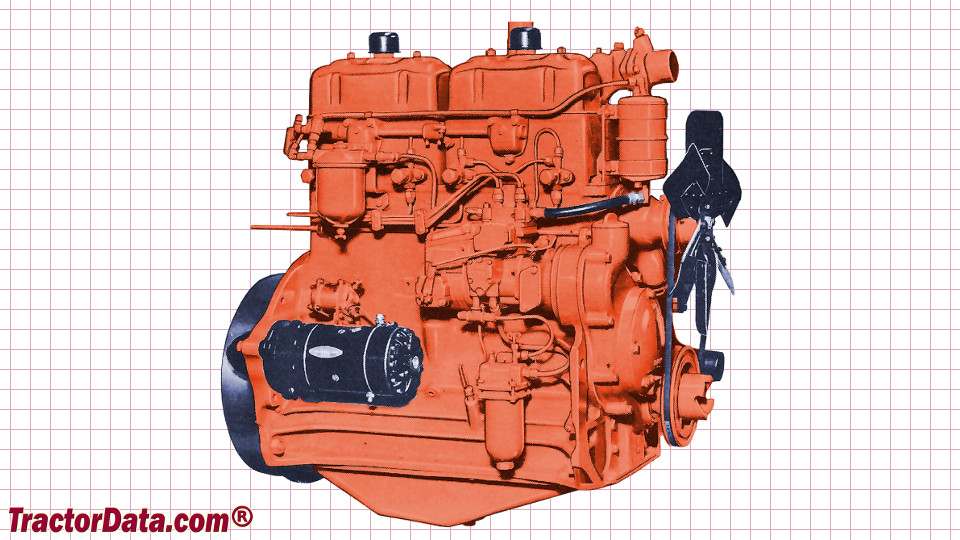

    J.I. Case 401 - engine

    J.I. Case 401 tractor photo
    1955 - 1957   400 Series
    Row-Crop tractor
    Next model:J.I. Case 701-B
    more J.I. Case 401 specifications...






    Engine Detail:

     J.I. Case
     diesel
     4-cylinder 8-valve
     liquid-cooled
     251 ci [4.1 L]
    Bore/Stroke:4.00x5.00 inches [102 x 127 mm]
    Air cleaner:oil bath
    Pre-heating:ether capsules
    Compression:15:1
    Rated RPM:1500
    Idle RPM:600-1600
    Firing order:1-3-4-2
    Starter volts:12
    Oil capacity:9 qts [8.5 L]
    Oil change:120 h
    Coolant capacity:29.6 qts [28.0 L]
    Intake valve clearance:0.012 inches [0.305 mm] (cold)
    Exhaust valve clearance:0.012 inches [0.305 mm] (cold)

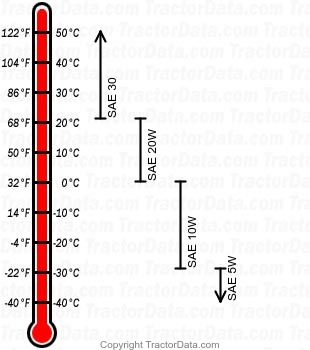

    401 diesel engine oil chart
