J.I. Case 401 Transmission



J.I. Case 401 tractor photo
1955 - 1957
400 Series
Row-Crop tractor
Series map:
401
55.6hp
Transmission
TransmissionPowr-range
Gears8 forward and 2 reverse
Oil capacity60 qts
56.8 L
Oil type
SAE 90
Four gears plus reverse, with high and low ranges. All gears and ranges selected by a single lever. A "belt-neutral" position lies between the high and low ranges, intended for stationary work. On tractors fitted with steel wheels high reverse plus gears 7 and 8 are locked out.

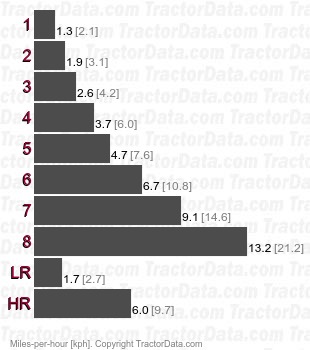

Speeds
With 12-38 rear tires.
401 Powr-range speeds
Shift Pattern
J.I. Case 401 transmission controls
