Tractors > J.I. Case > 401

J.I. Case 401 Tests



J.I. Case 401 tractor photo
1955 - 1957
400 Series
Row-Crop tractor
Series map:
401
55.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 565

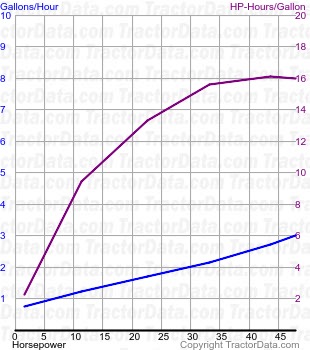

401 fuel use from test 565
Nebraska Tractor Test 565
Diesel 8-speed 2WD
October 17 - 25, 1955
Link: Nebraska Tractor Test 565 file
Belt power (max)49.40 hp
36.8 kW
Belt fuel use (max)3.1 gal/hour
11.7 l/hour
Drawbar performance
Max power33.47 hp
25.0 kW
Fuel use2.4 gal/hour
9.1 l/hour
Gear 5 used for power test.
Max pull6,018 lbs
2729 kg
Gear 1 used for pull test.
