International Harvester 684
| | 1977 - 1984 |
| 84 Series | | Utility tractor |
|
Series map:
Hydro 84
684
784
65.2hp*
69.0hp
74.9hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | International Harvester
|
| Utility tractor |
| Built in Doncaster, England |
| Original price was $21,100 in 1984 |
| International Harvester 684 Power |
| Engine | 69 hp
51.5 kW
|
| Drawbar (claimed) | 55.9 hp
41.7 kW
|
| PTO (claimed) | 62.5 hp
46.6 kW
|
| Plows | 4
|
| Drawbar (tested) | 54.56 hp
40.7 kW
|
| PTO (tested) | 62.52 hp
46.6 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Independent hydraulic wet disc brakes |
| ROPS canopy or cab optional |
| Capacity |
| Fuel | 20 gal
75.7 L
|
| Hydraulic system | 9 gal
34.1 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 9 gal
34.1 L
|
| Valves | 1 or 2
|
| Pump flow | 13 gpm
49.2 lpm
|
| | 15.4 gpm (optional)
58.3 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift | 3600 lbs
1632 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic wet disc
|
| Rear PTO Type | 540
|
| Dimensions & Tires |
| Utility Wheelbase | 88 inches
223 cm
|
| Row-crop Wheelbase | 84.5 inches
214 cm
|
| 4WD Wheelbase | 85.2 inches
216 cm
|
| Low-profile Wheelbase | 83.75 inches
212 cm
|
| Weight | 5620 to 6765 pounds
|
| Front tire | 7.50-16
|
| Rear tire | 16.9-30
|
 Full dimensions and tires ... |

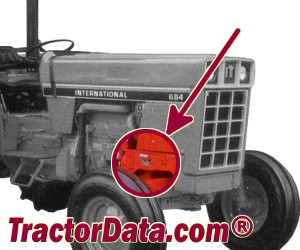

| 684 Serial Number Location |
 |
| Serial number plate on the the front axle support on right side of tractor. |
| Electrical |
| Ground | negative
|
| Charging amps | 45
|
| Battery volts | 12
|
| References |
 |
| 1985 Farm Equipment Buyer's Guide published by CaseIH |
| 1979 Buyer's Guide published by International Harvester |
| Buyer's Guide 1981 published by International Harvester |
| Buyer's Guide 1982 published by International Harvester |
| 84 Series Hi-Performers published in 1978, by International Harvester |
| International Series 84 Utility/Row-Crop Tractors published in 1978, by International Harvester |
| International Series 84 tractors published in 1982, by International Harvester |
| International Series 84 Tractors published in 1983, by International Harvester |
| Agricultural Equipment Reference Catalog published in 1980, by International Harvester |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on February 9, 2023 |
