Tractors > International Harvester > 684

International Harvester 684 Tests



International Harvester 684 tractor photo
1977 - 1984
84 Series
Utility tractor
Series map:
Hydro 84
684
784
65.2hp*
69.0hp
74.9hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1314

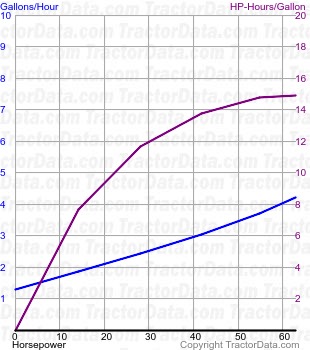

684 fuel use from test 1314
Nebraska Tractor Test 1314
Diesel 8-speed 2WD
May 24 - June 4, 1979
Link: Nebraska Tractor Test 1314 file
PTO performance
Power at rated engine speed62.52 hp
46.6 kW
Fuel use4.2 gal/hour
15.9 l/hour
Power at rated PTO speed58.75 hp
43.8 kW
Fuel use3.8 gal/hour
14.4 l/hour
Drawbar performance
Max power54.56 hp
40.7 kW
Fuel use4.1 gal/hour
15.5 l/hour
Gear 1H used for power test.
Max pull6858 lbs
3110 kg
Gear 2L used for pull test.
