    International Harvester 574 - tests

    International Harvester 574 tractor photo  I&T Manual: IH 766, 826, 966, 1026, 1066, 454, 464, 484, 574, 584, 674, 786, 886, 986, 1086
    I&T Shop Manual
    1970 - 1978
    Utility tractor
    Next model:International Harvester 684
    more International Harvester 574 specifications...






    Nebraska Tractor Test 1098:

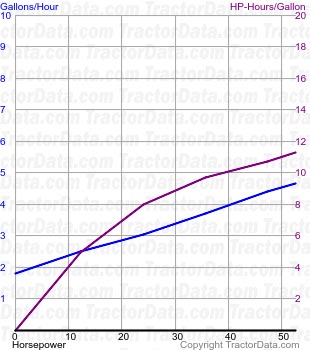

    574 fuel use from test 1098
    Test Date:April 21 - May 11, 1972
    Type:Gasoline 8-speed 2WD
    PTO power (rated engine speed):52.97 hp [39.5 kW]
    PTO fuel use (engine speed):4.7 gal/hour [17.8 l/hour]
    Drawbar power (max):44.03 hp [32.8 kW]
    Drawbar fuel use (max):4.6 gal/hour [17.4 l/hour]
    Drawbar pull (max):6,360 lbs [2884 kg]
    Max pull gear:1L
    Test report:PDF file


    Nebraska Tractor Test 1099:

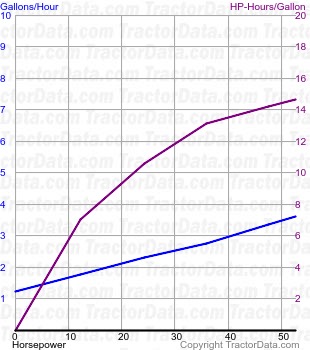

    574 fuel use from test 1099
    Test Date:April 22 - May 12, 1972
    Type:Diesel 8-speed 2WD
    PTO power (rated engine speed):52.55 hp [39.2 kW]
    PTO fuel use (engine speed):3.6 gal/hour [13.6 l/hour]
    Drawbar power (max):45.85 hp [34.2 kW]
    Drawbar fuel use (max):3.6 gal/hour [13.6 l/hour]
    Drawbar pull (max):6,446 lbs [2923 kg]
    Max pull gear:1L
    Test report:PDF file
