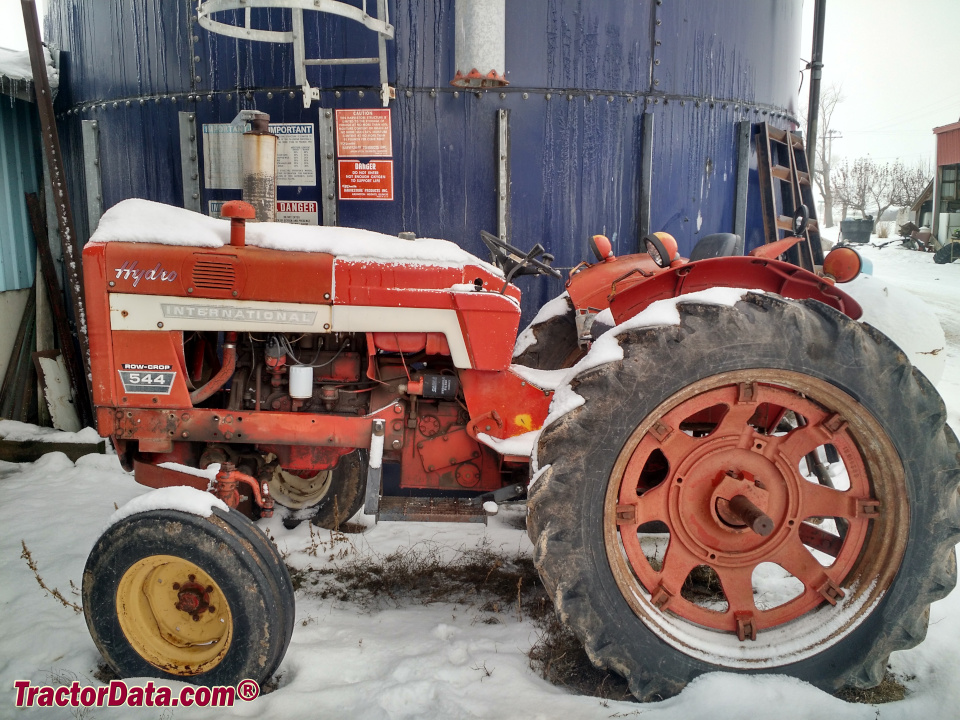

    International Harvester 544

    No photo available  I&T Manual: IH 544, 656, 666, 686, 684, 784, 884, 1466, 1468, 1486, 1568, 1586, Hydro 70, 84, 86, 100, 186
    I&T Shop Manual
    1968 - 1973
    Utility tractor
    Previous model:International Harvester 504






    Production:

    Manufacturer:International Harvester
    Total built:13,000
    Original price (USD):$7,500 (1973)


    Variants:

    Farmall 544:row-crop tractor
    2544:industrial tractor


    International Harvester 544 Engines:

       International Harvester 3.9L 4-cyl diesel
       International Harvester 3.3L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:15 gal [56.8 L] (diesel)
     23 gal [87.1 L] (gasoline)


    3-Point Hitch:

    Rear Type:2


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540/1000


    Dimensions & Tires:

    Wheelbase:73 inches [185 cm]
    Weight:4980 to 7215 pounds
    Front tire:6.00-16
    Rear tire:14.9-28
    full dimensions and tires ...


    544 Serial Numbers:

    Location:Clutch housing, right side
    1968: 10250
    1969: 12699
    1970: 14589
    1971: 16018
    1972: 16838
    1973: 17341

    how to read serial numbers...



    International Harvester 544 Power:

    Drawbar (claimed):45.4 hp [33.9 kW]
    PTO (claimed):52 hp [38.8 kW]
    Drawbar (tested):44.7 hp [33.3 kW]
    PTO (tested):55.5 hp [41.4 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:hydrostatic power
    Brakes:disc


    Hydraulics:

    Pump flow:6 gpm [22.7 lpm]
    Total flow:12 gpm [45.4 lpm]
