    Farmall 230

    Farmall 230 tractor photo  I&T Manual: IH 100, 130, 140, 200, 230, 240, 404, 2404, 330, 340, 504, 2504, B-275, B-414, 354, 364, 384, 424, 444, 2424, 2444
    I&T Shop Manual
    1956 - 1958
    Row-Crop tractor
    Previous model:Farmall 200
    Smaller:Farmall 130






    Production:

    Manufacturer:International Harvester
    Original price (USD):$2,100 (1958)


    Farmall 230 Engine:

       International Harvester 2.0L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:11 gal [41.6 L]


    Power Take-off (PTO):

    Rear RPMs:540


    Dimensions & Tires:

    Weight:3440 to 5331 pounds
    Front tire:5.00-15
    Rear tire:11.2-36
    full dimensions and tires ...


    230 Serial Numbers:

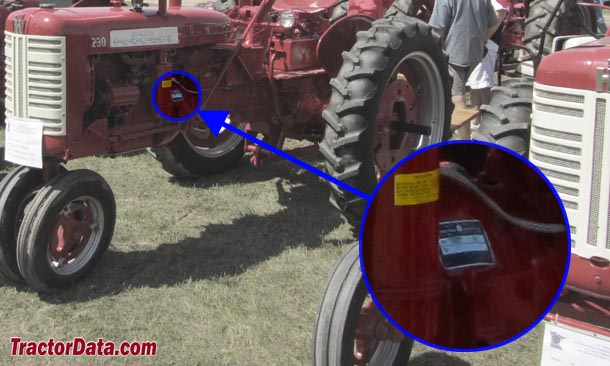

    Location:Right side of clutch housing
    photo of 230 serial number

    1956: 501
    1957: 815
    1958: 6827
    Final: 7671

    how to read serial numbers...



    Farmall 230 Power:

    Drawbar (claimed):20.0 hp [14.9 kW]
    PTO (claimed):24.95 hp [18.6 kW]
    Drawbar (tested):25.00 hp [18.6 kW]
    Belt (tested):28.06 hp [20.9 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:differential mechanical dry disc
    Cab:Open operator station.


    Belt Pulley:

    Diameter:8 inches [20 cm]
    Width:6 inches [15 cm]
    RPMs:1,487
    Speed:3,114 ft/min [949.15 meters/min]


    Battery:

    Number:1
    Volts:6
