Tractors > Ford > 9600

Ford 9600 Tests



Ford 9600 tractor photo
1972 - 1976
Row-Crop tractor
Series map:
8600
9600
123.0hp*
150.5hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1122

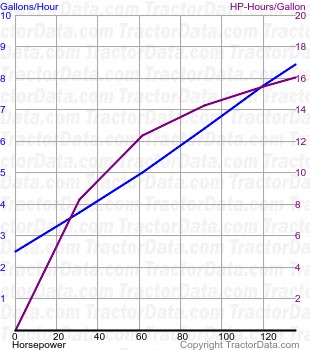

9600 fuel use from test 1122
Nebraska Tractor Test 1122
Diesel Dual Power 2WD
April 2 - 17, 1973
Link: Nebraska Tractor Test 1122 file
PTO performance
Power at rated engine speed135.46 hp
101.0 kW
Fuel use8.4 gal/hour
31.8 l/hour
Power at rated PTO speed128.46 hp
95.8 kW
Fuel use7.6 gal/hour
28.8 l/hour
Drawbar performance
Max power111.40 hp
83.1 kW
Gear 8 used for power test.
Max pull12,203 lbs
5535 kg
Gear 5 used for pull test.
