Ford 8600 Tests


Ford 8600 tractor photo
1972 - 1976
Series map:
8600
9600
123.0hp*
150.5hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1121

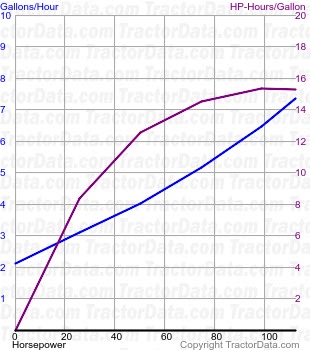

8600 fuel use from test 1121
Nebraska Tractor Test 1121
Diesel Dual Power 2WD
April 2 - 14, 1973
Link: Nebraska Tractor Test 1121 file
PTO performance
Power at rated engine speed110.69 hp
82.5 kW
Fuel use7.3 gal/hour
27.6 l/hour
Power at rated PTO speed99.32 hp
74.1 kW
Fuel use6.3 gal/hour
23.8 l/hour
Drawbar performance
Max power92.42 hp
68.9 kW
Fuel use7.3 gal/hour
27.6 l/hour
Gear 5PD used for power test.
Max pull11,363 lbs
5154 kg
Gear 2DD used for pull test.
