Tractors > Ford > 9700

Ford 9700 Tests



Ford 9700 tractor photo
1977 - 1979
Row-Crop tractor
Series map:
8700
9700
127.0hp
146.0hp
Nebraska Tractor Test 1243

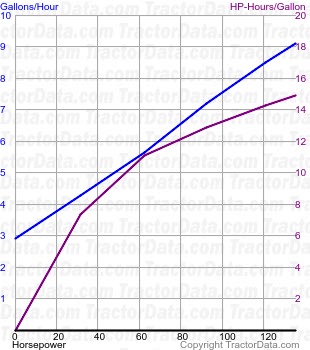

9700 fuel use from test 1243
Nebraska Tractor Test 1243
Diesel 16-speed 2WD
May 9 - 20, 1977
Link: Nebraska Tractor Test 1243 file
PTO performance
Power at rated engine speed135.64 hp
101.1 kW
Fuel use9.1 gal/hour
34.4 l/hour
Power at rated PTO speed129.25 hp
96.4 kW
Fuel use8.1 gal/hour
30.7 l/hour
Drawbar performance
Max power113.32 hp
84.5 kW
Fuel use9.0 gal/hour
34.1 l/hour
Gear 5PD used for power test.
Max pull15010 lbs
6808 kg
