Ford 9N Engine


Ford 9N tractor photo
1939 - 1942
N Series
Utility tractor
Series:9N
2N
Engines overview
Ford 2.0L 4-cyl gasoline
Ford 2.0L 4-cyl distillate
Engine Detail
Ford
gasoline
4-cylinder
liquid-cooled inline
Displacement:119.7 ci
2.0 L
Bore/Stroke:3.188x3.75 inches
81 x 95 mm
Air cleaner:oil bath
Compression:6.0 : 1
Rated RPM:2000
Torque:84 lb-ft
113.9 Nm
Torque RPM:1500
Firing order:1-2-4-3
Starter volts:6
Coolant capacity:12 qts
11.4 L
Sparkplug gap:0.025 inches
0.635 mm
Point gap:0.015 inches
0.381 mm
Intake valve clearance:0.015 inches
0.381 mm *Cold
Exhaust valve clearance:0.015 inches
0.381 mm *Cold
Engine Oil

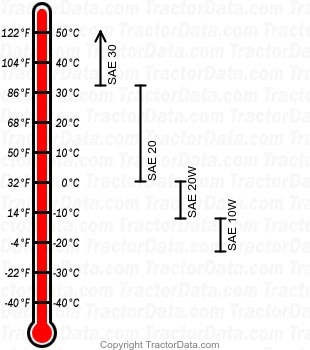

9N gasoline engine oil chart
Oil capacity:6 qts
5.7 L
Oil change:200 h

Engine Detail
Ford
distillate
4-cylinder
liquid-cooled
The distillate engine was used on the 9NAN variation, power is about 10% lower than on the 9N.
Displacement:119.7 ci
2.0 L
Bore/Stroke:3.188x3.75 inches
81 x 95 mm
Compression:4.75 : 1
Rated RPM:2000
Firing order:1-2-4-3
Starter volts:6
Engine Oil
9N distillate engine oil chart
Oil capacity:6 qts
5.7 L
Oil change:200 h
