Tractors > Ford > 9N

Ford 9N Tests



Ford 9N tractor photo
1939 - 1942
N Series
Utility tractor
Series map:
9N
26.5hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 339

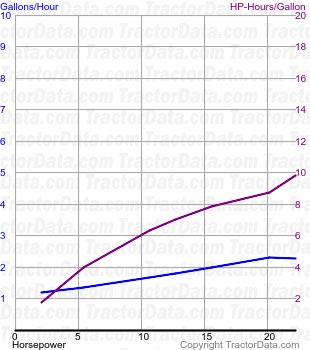

9N fuel use from test 339
Nebraska Tractor Test 339
Gasoline 3-speed 2WD
April 9 - 18, 1940
Link: Nebraska Tractor Test 339 file
Belt power (max)23.56 hp
17.6 kW
Belt fuel use (max)2.4 gal/hour
9.1 l/hour
Drawbar performance
Max power16.31 hp
12.2 kW
Gear 2 used for power test.
Max pull2,236 lbs
1014 kg
Gear 2 used for pull test.
