Tractors > Ford > 2N

Ford 2N Engine



Ford 2N tractor photo
1942 - 1947
N Series
Utility tractor
Series map:
2N
26.5hp*
*Estimated engine power for comparison only.
Engine Detail
Ford
gasoline
4-cylinder
liquid-cooled inline
Displacement119.7 ci
2.0 L
Bore/Stroke3.188x3.75 inches
81 x 95 mm
Compression6.0 : 1
Rated RPM2000
Torque84 lb-ft
113.9 Nm
Torque RPM1500
Firing order1-2-4-3
Starter volts6
Coolant capacity12 qts
11.4 L
Sparkplug gap0.025 inches
0.635 mm
Point gap0.015 inches
0.381 mm
Intake valve clearance0.015 inches*Cold
0.381 mm
Exhaust valve clearance0.015 inches*Cold
0.381 mm
Engine Oil

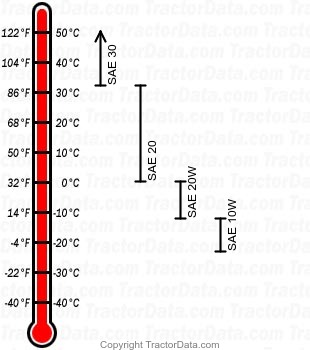

2N gasoline engine oil chart
Oil capacity6 qts
5.7 L
Oil change200 h
