Tractors > Allis Chalmers > 190

Allis Chalmers 190 - tests

Allis Chalmers 190 tractor photo
1964 - 1972
Row-Crop tractor
Previous model:Allis Chalmers D19
Series back:Allis Chalmers 180
more Allis Chalmers 190 specifications...






Nebraska Tractor Test 886:

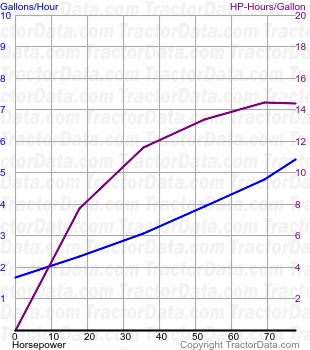

190 fuel use from test 886
Test Date:April 10 - 16, 1965
Type:Diesel 8-speed 2WD
PTO power (rated engine speed):77.20 hp [57.6 kW]
PTO fuel use (engine speed):5.4 gal/hour [20.4 l/hour]
PTO power (rated PTO speed):72.33 hp [53.9 kW]
PTO fuel use (PTO speed):5.0 gal/hour [18.9 l/hour]
Drawbar power (max):65.33 hp [48.7 kW]
Drawbar fuel use (max):5.3 gal/hour [20.1 l/hour]
Drawbar pull (max):8663 lbs [3929 kg]
Max pull gear:2
Test report:PDF file


Nebraska Tractor Test 928:

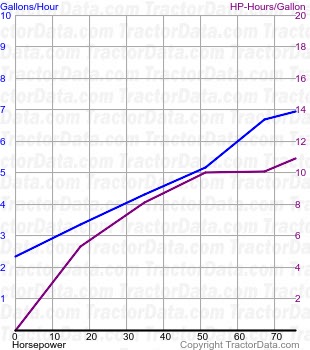

190 fuel use from test 928
Test Date:November 9 - 16, 1965
Type:Gasoline 8-speed 2WD
PTO power (rated engine speed):75.37 hp [56.2 kW]
PTO fuel use (engine speed):6.9 gal/hour [26.1 l/hour]
PTO power (rated PTO speed):70.18 hp [52.3 kW]
PTO fuel use (PTO speed):6.2 gal/hour [23.5 l/hour]
Drawbar power (max):63.10 hp [47.1 kW]
Drawbar fuel use (max):7.2 gal/hour [27.3 l/hour]
Drawbar pull (max):8753 lbs [3970 kg]
Max pull gear:2
Test report:PDF file
