Allis Chalmers 180 Transmission


Allis Chalmers 180 tractor photo
1967 - 1973
Row-Crop tractor
Series map:
170
180
190
60.0hp*
71.1hp*
85.8hp*
*Estimated engine power for comparison only.
Transmission
TransmissionPower Director
Typepartial powershift
Gears8 forward and 2 reverse
Oil capacity24 qts
22.7 L
The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged.

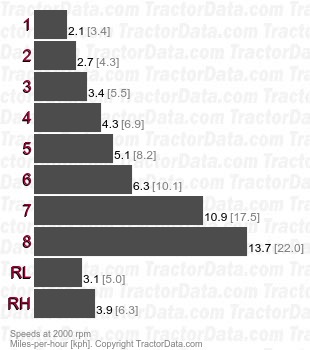

Speeds
With 16.9-28 rear tires.
180 Power Director partial powershift speeds
Shift Pattern
Allis Chalmers 180 transmission controls
