Allis Chalmers 180 Tests


Allis Chalmers 180 tractor photo
1967 - 1973
Row-Crop tractor
Series map:
170
180
190
60.0hp*
71.1hp*
85.8hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 964: diesel 8-speed 2WD
NTTL 1005: gasoline 8-speed 2WD
Nebraska Tractor Test 964

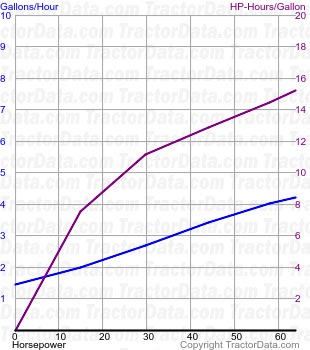

180 fuel use from test 964
Nebraska Tractor Test 964
Diesel 8-speed 2WD
10/13/1967
Link: Nebraska Tractor Test 964 file
PTO performance
Power at rated engine speed64.01 hp
47.7 kW
Fuel use4.2 gal/hour
15.9 l/hour
Power at rated PTO speed63.90 hp
47.7 kW
Fuel use4.2 gal/hour
15.9 l/hour
Drawbar performance
Max power55.28 hp
41.2 kW
Fuel use4.2 gal/hour
15.9 l/hour
Gear 4 used for power test.
Nebraska Tractor Test 1005

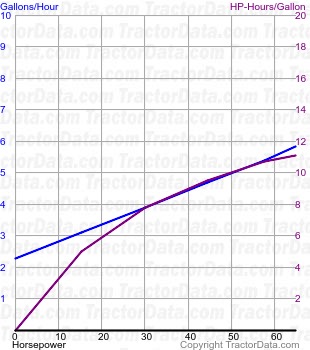

180 fuel use from test 1005
Nebraska Tractor Test 1005
Gasoline 8-speed 2WD
April 8 - 14, 1969
Link: Nebraska Tractor Test 1005 file
PTO performance
Power at rated engine speed65.16 hp
48.6 kW
Fuel use5.9 gal/hour
22.3 l/hour
Power at rated PTO speed64.62 hp
48.2 kW
Fuel use5.8 gal/hour
22.0 l/hour
Drawbar performance
Max power56.05 hp
41.8 kW
Fuel use5.8 gal/hour
22.0 l/hour
Gear 4 used for power test.
