| | 1992 - 1997 |
| 5000 Utility Series | | Utility tractor |
|
Series map:
5200
5300
5400
45.6hp
55.9hp
68.4hp
| Transmissions overview |
| 9-speed unsynchronized gear |
| 9-speed partially synchronized |
| 12-speed power shuttle |
| Transmission |
| Transmission | John Deere Collar Shift
|
| Type | unsynchronized gear
|
| Gears | 9 forward and 3 reverse
|
| Clutch | dry disc
|
| Three gears (1-3), plus reverse, with three ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range. |

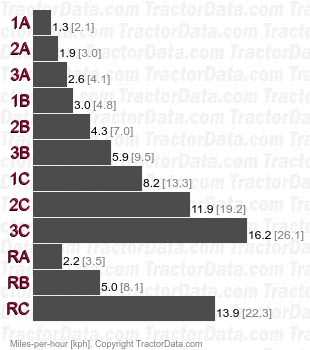

| Speeds |
|
| Transmission |
| Transmission | John Deere Top-Shaft Synchronized
|
| Type | partially synchronized
|
| Gears | 9 forward and 3 reverse
|
| Clutch | dry disc
|
| Three gears (1-3), plus reverse, in three ranges (A-C). Gear shifts are synchronized using the clutch. Tractor must be stopped to shift range. |
| Speeds |
|
| Transmission |
| Transmission | John Deere TSS Reverser
|
| Type | power shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | wet disc
|
| Four gears (1-4) in three ranges (A-C) with left-hand reverser lever. |
