John Deere 5300 Tests

John Deere 5300 tractor photo
1992 - 1997
5000 Utility Series
Utility tractor
Series map:
OCED Tractor Test 1661

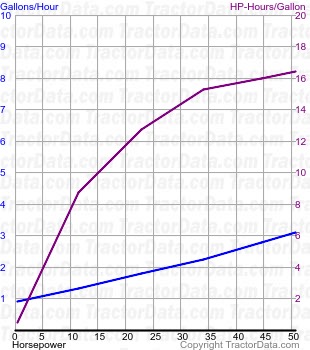

5300 fuel use from test 116
OCED Tractor Test 1661
Diesel 9-speed 4WD
September 22 - October 7, 1992
Link: OCED Tractor Test 1661 file
PTO performance
Power at rated engine speed50.67 hp
37.8 kW
Fuel use3.1 gal/hour
11.7 l/hour
Drawbar performance
Max power43.44 hp
32.4 kW
Fuel use3.2 gal/hour
12.1 l/hour
Gear 2-II used for power test.
Max pull5,189 lbs
2353 kg
Gear 1-II used for pull test.
