Tractors > John Deere > 855

John Deere 855 Engine



John Deere 855 tractor photo
1986 - 1998
55 Compact Series
Compact Utility tractor
Series map:
755
855
955
20.0hp
24.0hp
33.0hp
Engine Detail
Yanmar 3TN75RJ
diesel
3-cylinder
liquid-cooled inline
During production, the fuel tank and battery location swapped, with a switch from electric to mechanical fuel pump.
Displacement60.7 ci
1.0 L
Bore/Stroke2.95x2.95 inches
75 x 75 mm
Power24 hp
17.9 kW
Fuel systemdirect injection
Air cleanerdry element
Pre-heatingair heater
Compression17.8:1
Rated RPM3200
Operating RPM1400-3425
Starter volts12
Coolant capacity4 qts
3.8 L
Engine Oil

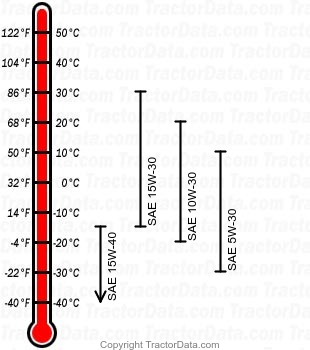

855 diesel engine oil chart
Oil capacity3.8 qts
3.6 L
