John Deere 955 Engine


John Deere 955 tractor photo
1989 - 1998
55 Compact Series
Compact Utility tractor
Series map:
855
955
24.0hp
33.0hp
Engine Detail
Yanmar 3TN84RJ
diesel
3-cylinder
liquid-cooled
Displacement87.3 ci
1.4 L
Bore/Stroke3.31x3.39 inches
84 x 86 mm
Power33 hp
24.6 kW
Fuel systemdirect injection
Air cleanerdry element
Pre-heatingair heater
Compression18.0:1
Rated RPM3200
Operating RPM1400-3425
Starter volts12

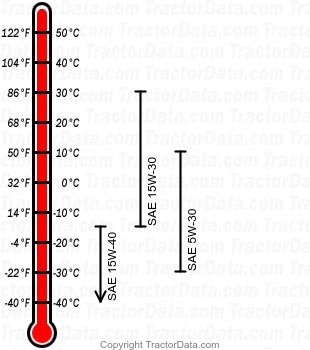

Oil capacity4.5 qts
4.3 L
Coolant capacity4 qts
3.8 L
