Tractors > John Deere > 4650

John Deere 4650 - tests

John Deere 4650 tractor photo
1983 - 1988   50 Series
Row-Crop tractor
Previous model:John Deere 4640
Next model:John Deere 4755
Series next:John Deere 4850
Series back:John Deere 4450
more John Deere 4650 specifications...






Nebraska Tractor Test 1460:

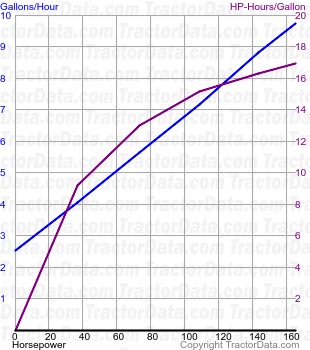

4650 fuel use from test 1460
Test Date:October 9 - 28, 1982
Type:Diesel Power Shift 2WD
PTO power (rated engine speed):165.52 hp [123.4 kW]
PTO fuel use (engine speed):9.8 gal/hour [37.1 l/hour]
Drawbar power (max):137.31 hp [102.4 kW]
Drawbar fuel use (max):9.6 gal/hour [36.3 l/hour]
Drawbar pull (max):16,746 lbs [7595 kg]
Max pull gear:5
Test report:PDF file


Nebraska Tractor Test 1477:

4650 fuel use from test 1477
Test Date:April 7 - 26, 1983
Type:Diesel Quad-Range 2WD
PTO power (rated engine speed):165.70 hp [123.6 kW]
PTO fuel use (engine speed):9.8 gal/hour [37.1 l/hour]
Drawbar power (max):142.31 hp [106.1 kW]
Drawbar fuel use (max):9.5 gal/hour [36.0 l/hour]
Drawbar pull (max):16,814 lbs [7626 kg]
Max pull gear:A2
Test report:PDF file
