John Deere 4755 Tests


John Deere 4755 tractor photo
1989 - 1991
4055 Series
Row-Crop tractor
4650
Series:455547554955
4760
OCED Tractor Test 1621

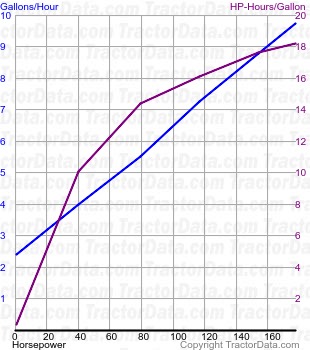

4755 fuel use from test 059
OCED Tractor Test 1621
Diesel Powershift 4WD
April 1 - May 1, 1989
Link: OCED Tractor Test 1621 file
PTO performance
Max power:178.96 hp
133.5 kW
Fuel use:9.6 gal/hour
36.3 l/hour
Power at rated engine speed:177.06 hp
132.0 kW
Fuel use:9.7 gal/hour
36.7 l/hour
Drawbar performance
Max power:147.76 hp
110.2 kW
Fuel use:9.7 gal/hour
36.7 l/hour
Gear 12 used for power test.
Max pull:21,481 lbs
9743 kg
Gear 3 used for pull test.
OCED Tractor Test 1630

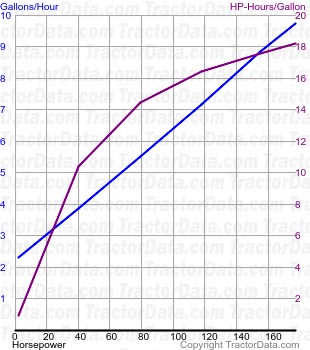

4755 fuel use from test 068
OCED Tractor Test 1630
Diesel Quad-Range 2WD
September 1 - October 1, 1989
Link: OCED Tractor Test 1630 file
PTO performance
Max power:180.35 hp
134.5 kW
Fuel use:9.6 gal/hour
36.3 l/hour
Power at rated engine speed:177.11 hp
132.1 kW
Fuel use:9.7 gal/hour
36.7 l/hour
Drawbar performance
Max power:156.97 hp
117.1 kW
Fuel use:9.6 gal/hour
36.3 l/hour
Max pull:19,898 lbs
9025 kg
