John Deere 2150 Transmission


John Deere 2150 tractor photo
1983 - 1986
2050 Series
Utility tractor
Series map:
2150
2350
50.0hp
61.1hp
Transmissions overview
8-speed partially synchronized
16-speed two-speed power shift
8-speed power shuttle
Transmission
TransmissionJohn Deere Top-Shaft Synchronized
Typepartially synchronized
Gears8 forward and 4 reverse
Four gears in two ranges, plus reverse range. Synchronized shifting between gears.
Speeds
With 13.6-28 rear tires.

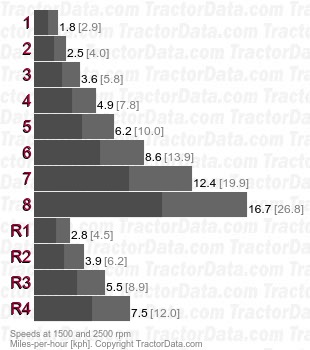

2150 Top-Shaft Synchronized partially synchronized speeds
Shift Pattern

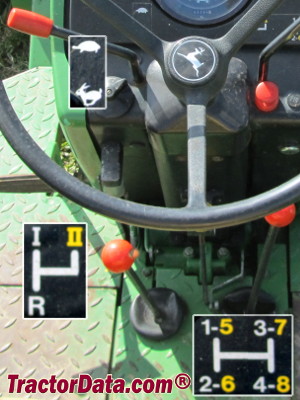

John Deere 2150 transmission controls
Transmission
TransmissionJohn Deere Hi-Lo TSS
Typetwo-speed power shift
Gears16 forward and 8 reverse
The Hi-Low adds a hydraulic power shift to the standard TSS transmission. A left-hand lever enables a clutchless shift between direct (high) range and a lower range.
Speeds

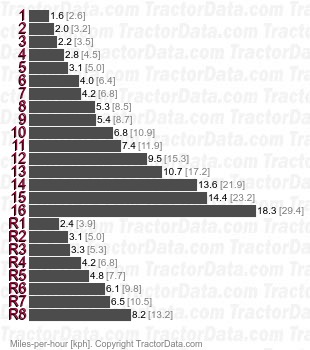

2150 Hi-Lo TSS two-speed power shift speeds
Transmission
TransmissionJohn Deere Direction Reverser
Typepower shuttle
Gears8 forward and 4 reverse
The Direction Reverser transmission provides clutchless hydraulic shuttle shifting using a left-hand reverser lever. Reverser not available with 4WD or cab. Reverse only operates in low range.
Speeds
With 13.6-28 rear tires.

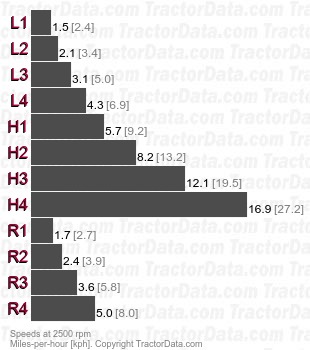

2150 Direction Reverser power shuttle speeds
