John Deere 4620 Transmission


John Deere 4620 tractor photo
1971 - 1972
Row-Crop tractor
4520
Series:43204620
4630
Transmissions overview
8-speed partially synchronized
8-speed full power shift
Transmission
Transmission:John Deere Syncro-Range
Type:partially synchronized
Gears:8 forward and 2 reverse
Clutch:14.75-inch dry disc
Oil capacity:64 qts
60.6 L
Speeds

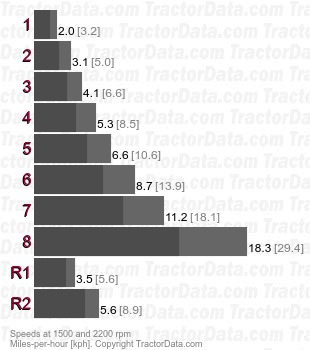

4620 Syncro-Range partially synchronized speeds
Transmission
Transmission:John Deere Power Shift
Type:full power shift
Gears:8 forward and 4 reverse
Clutch:hydraulic wet discs
Oil capacity:72 qts
68.1 L
Speeds
With 20.8-38 rear tires.

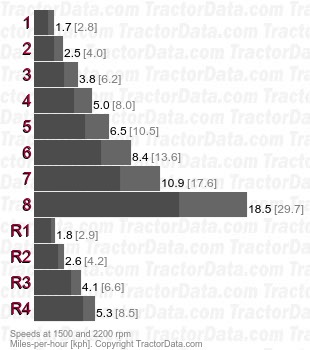

4620 Power Shift full power shift speeds
