Tractors > John Deere > 1010

John Deere 1010 - transmission

John Deere 1010 tractor photo
1960 - 1965   New Generation Series
Utility tractor
Next model:John Deere 1020
Series next:John Deere 2010
more John Deere 1010 specifications...






Transmission:

Type:sliding gear
Gears:5 forward and 1 reverse
Clutch:dry disc
Shift lever for the 1010 was originally on the dash. Starting with the 1963 model year (serial number 031001) the shifter was moved to the top of the transmission.
Speeds:

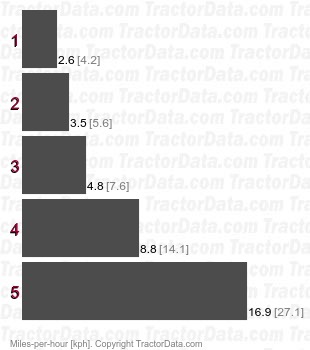

1010  sliding gear speeds

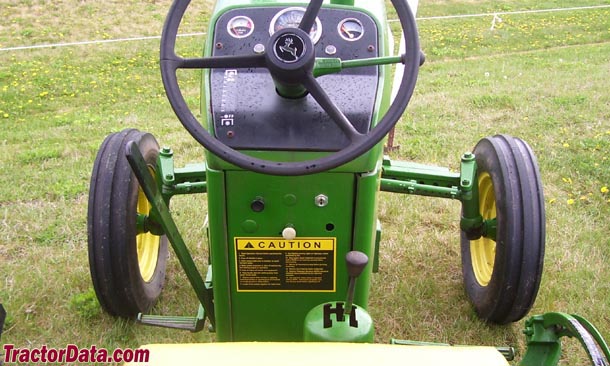

John Deere 1010  transmission photo
