Tractors > John Deere > 1010

John Deere 1010 Tests



John Deere 1010 tractor photo
1960 - 1965
New Generation Series
Utility tractor
Series map:
1010
2010
40.1hp*
51.9hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 802: gasoline 5-speed 2WD
NTTL 803: diesel 5-speed 2WD
Nebraska Tractor Test 802

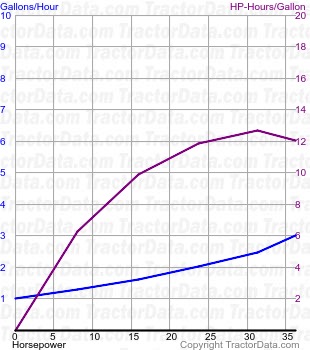

1010 fuel use from test 802
Nebraska Tractor Test 802
Gasoline 5-speed 2WD
June 20 - 28, 1961
Link: Nebraska Tractor Test 802 file
PTO performance
Power at rated engine speed36.13 hp
26.9 kW
Fuel use3.5 gal/hour
13.2 l/hour
Power at rated PTO speed29.6 hp
22.1 kW
Fuel use2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power30.00 hp
22.4 kW
Fuel use3.5 gal/hour
13.2 l/hour
Max pull3,615 lbs
1639 kg
Gear 1 used for pull test.
Nebraska Tractor Test 803

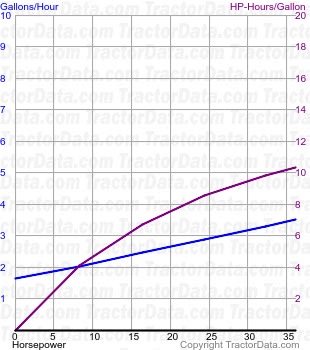

1010 fuel use from test 803
Nebraska Tractor Test 803
Diesel 5-speed 2WD
June 21 - 29, 1961
Link: Nebraska Tractor Test 803 file
PTO performance
Power at rated engine speed35.99 hp
26.8 kW
Fuel use3.0 gal/hour
11.4 l/hour
Power at rated PTO speed29.70 hp
22.1 kW
Fuel use2.4 gal/hour
9.1 l/hour
Drawbar performance
Max power29.16 hp
21.7 kW
Fuel use2.9 gal/hour
11.0 l/hour
Max pull3,657 lbs
1658 kg
Gear 1 used for pull test.
