John Deere 1020 Transmission


John Deere 1020 tractor photo
1965 - 1973
New Generation Series
Utility tractor
Series map:
1020
1520
43.1hp
51.7hp
Transmissions overview
8-speed collar shift
16-speed two-speed power shift
8-speed power shuttle
Transmission
Typecollar shift
Gears8 forward and 4 reverse
Clutchdry disc
Four gears (1-4) in two ranges (I/II) plus reverse (R) range.

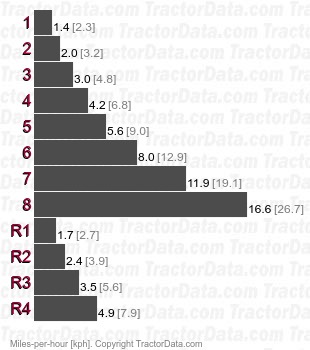

Speeds
1020  collar shift speeds
Shift Pattern
John Deere 1020 transmission controls
Transmission
Typetwo-speed power shift
Gears16 forward and 8 reverse
Clutchdry disc
Four gears (1-4) in two ranges (I/II) plus reverse (R) range. Left-hand power shift lever on dash.
Transmission
Typepower shuttle
Gears8 forward and 4 reverse
Four gears (1-4) in two ranges (I/II) with left-hand reverser lever. Reverse only available in low (I) range.
