    Allis Chalmers B

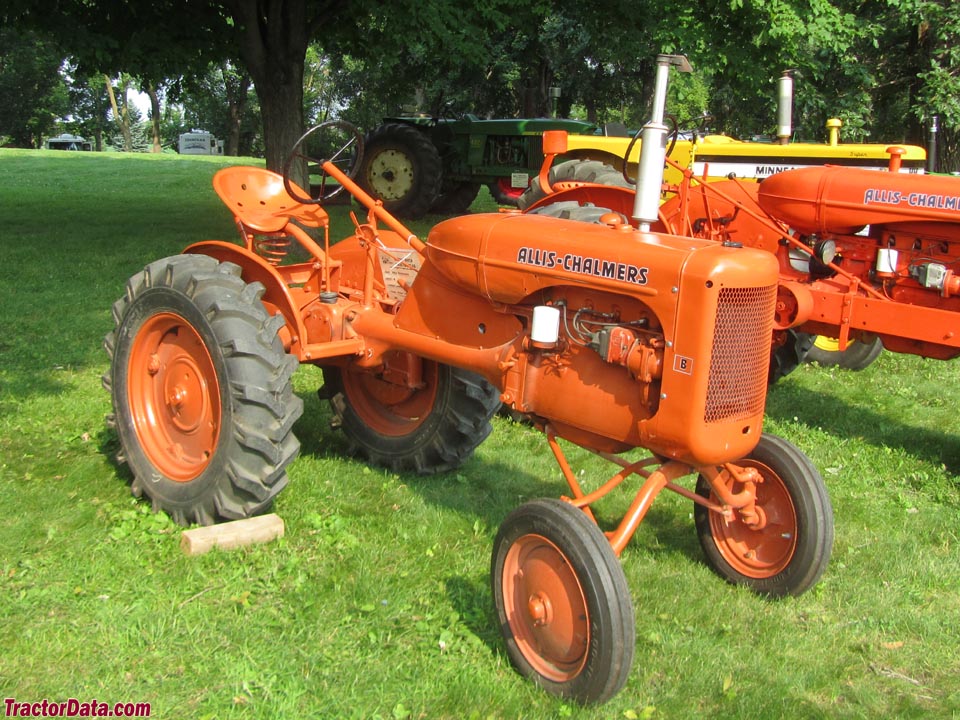

    Allis Chalmers B tractor photo
    1938 - 1957
    Row-Crop tractor





    The Allis-Chalmers model B was the result of research by Harry Merritt, Allis tractor division manager, into U.S. farm sizes in the early 1930s. At that time, most tractors were being used on farms larger than 100 acres, while more than half of all farms were under 100 acres. The Allis B was specifically designed to enter into the small-farm market, and early literature focused on the economy of using tractors instead of horses.


    Production:

    Manufacturer:Allis Chalmers
    Factory:West Allis, Wisconsin, USA
     Southampton, England
    Total built:120,783
    Original price (USD):$1500 (1957)


    Variants:

    IB:industrial tractor


    Allis Chalmers B Engines:

       Allis-Chalmers 2.1L 4-cyl gasoline
       Allis-Chalmers 1.9L 4-cyl gasoline
       Waukesha 1.9L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:12 gal [45.4 L]


    Rear Hitch:

    Type:Allis Snap Coupler


    Power Take-off (PTO):

    Rear PTO:transmission
    Rear RPM:560


    Dimensions & Tires:

    Wheelbase:73.4 inches [186 cm]
    Weight:2060 to 4193 pounds
    Front tire:4.00-15
    Rear tire:9-24
    full dimensions and tires ...


    B Serial Numbers:

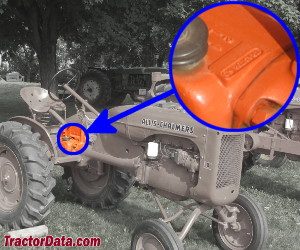

    Location:On top of transmission case, behind shift lever. English-built models have an 'EB' serial number.
    1938: 97
    1939: 11800
    1940: 33502
    1941: 49721
    1942: 56782
    1943: 64501
    1944: 65502
    1945: 70210
    1946: 72265
    1947: 73370
    1948: 80556
    1949: 92295
    1950: 102393
    1951: 114527
    1952: 118674
    1953: 122310
    1954: 124201
    1955: 124711
    1956: 126497
    1957: 127186
    Final: 127461
    1946: 1001 (IB)
    1947: 1003 (IB)
    1948: 1010 (IB)
    1949: 1282 (IB)
    1950: 1556 (IB)
    1951: 1879 (IB)
    1952: 2219 (IB)
    1953: 2570 (IB)
    1951: 4001 (EB)
    1952: 6861 (EB)
    1953: 9200 (EB)
    1954: 11120 (EB)

    how to read serial numbers...



    Allis Chalmers B Power:

    Plows:1 (16-inch)
    Drawbar (tested):19.51 hp [14.5 kW]
    Belt (tested):22.25 hp [16.6 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:differential mechanical contracting band
    Cab:Open operator station. Canvas cab optional.


    Belt Pulley:

    Diameter:8 inches [20 cm]
    Width:5.5 inches [13 cm]
    RPM:1053


    Electrical:

    Ground:positive
    Charging system:generator
    Charging amps:12


    Battery:

    Number:1
    Volts:6
