Allis Chalmers B Transmission

Allis Chalmers B tractor photo
1938 - 1957
Row-Crop tractor
Typeunsynchronized gear
Gears3 forward and 1 reverse
Clutchdry disc
Oil capacity6 qts
5.7 L
Oil type
32oF [0oC] : SAE140
32oF [0oC] : SAE90

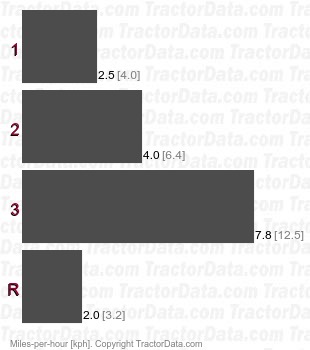

B  unsynchronized gear speeds

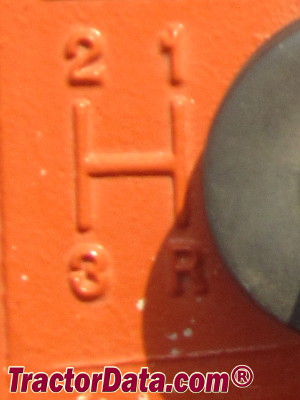

Shift Pattern

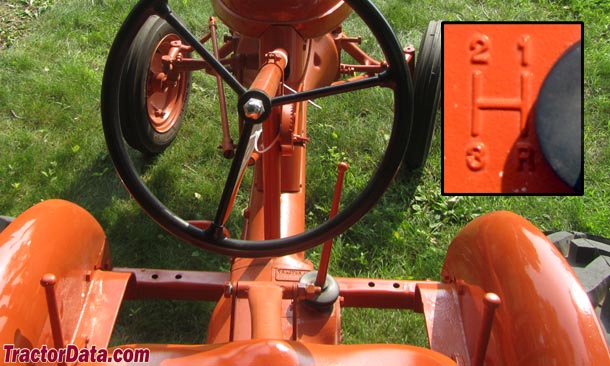

Allis Chalmers B transmission controls
