Tractors > Allis Chalmers > B

Allis Chalmers B Tests



Allis Chalmers B tractor photo
1938 - 1957
Row-Crop tractor
Tractor Tests
NTTL 302: 116 ci gas 3-speed 2WD
NTTL 439: 125 ci gas 3-speed 2WD
Nebraska Tractor Test 302

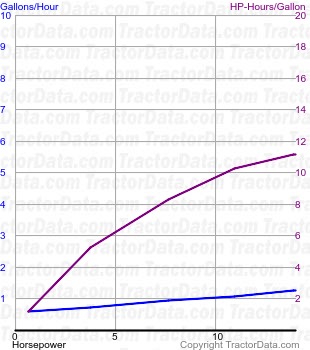

B fuel use from test 302
Nebraska Tractor Test 302
116 ci gas 3-speed 2WD
May 31 - June 8, 1938
Link: Nebraska Tractor Test 302 file
Belt power (max)15.68 hp
11.7 kW
Belt fuel use (max)1.5 gal/hour
5.7 l/hour
Drawbar performance
Max power12.97 hp
9.7 kW
Gear 2 used for power test.
Max pull1,473 lbs
668 kg
Gear 2 used for pull test.
Nebraska Tractor Test 439

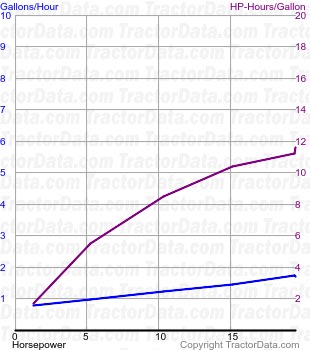

B fuel use from test 439
Nebraska Tractor Test 439
125 ci gas 3-speed 2WD
May 17 - 24, 1950
Link: Nebraska Tractor Test 439 file
Belt power (max)22.25 hp
16.6 kW
Belt fuel use (max)2.1 gal/hour
7.9 l/hour
Drawbar performance
Max power19.51 hp
14.5 kW
Gear 2 used for power test.
Max pull2,667 lbs
1209 kg
Gear 1 used for pull test.
