Engines overview | |
Allis-Chalmers 2.1L 4-cyl gasoline | |
Allis-Chalmers 1.9L 4-cyl gasoline | |
Waukesha 1.9L 4-cyl gasoline |
Engine Detail | |
Allis-Chalmers CE | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Final engine, used from 1943 on, SN 64501 | |
Displacement: | 125.2 ci 2.1 L |
Bore/Stroke: | 3.375x3.50 inches 86 x 89 mm |
Air cleaner: | oil bath |
Compression: | 5.75:1 |
Rated RPM: | 1500 |
Firing order: | 1-2-4-3 |
Starter volts: | 6 |
Oil capacity: | 4 qts 3.8 L |
Sparkplug: | Autolite AN 7 |
AC 45 | |
Sparkplug gap: | 0.035 inches 0.889 mm |
Point gap: | 0.020 inches 0.508 mm |
Intake valve clearance: | 0.010 inches 0.254 mm (hot) |
Exhaust valve clearance: | 0.010 inches 0.254 mm (hot) |
Engine Detail | |
Allis-Chalmers BE | |
gasoline | |
4-cylinder | |
liquid-cooled vertical I-head | |
Second engine, used until 1943, SN 64500 | |
Displacement: | 116.1 ci 1.9 L |
Bore/Stroke: | 3.25x3.50 inches 83 x 89 mm |
Compression: | 4.92:1 |
Rated RPM: | 1400 |
Firing order: | 1-2-4-3 |
Coolant capacity: | 8 qts 7.6 L |
Sparkplug gap: | 0.040 inches 1.016 mm |
Point gap: | 0.020 inches 0.508 mm |
Intake valve clearance: | 0.010 inches 0.254 mm (hot) |
Exhaust valve clearance: | 0.010 inches 0.254 mm (hot) |

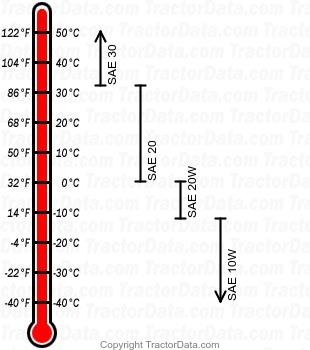

Engine Oil | |
![]() | |
Oil capacity: | 4 qts 3.8 L |
Engine Detail | |
Waukesha | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Original engine, used in 1937 on the first 96 tractors built | |
Displacement: | 113 ci 1.9 L |
Bore/Stroke: | 3.00x4.00 inches 76 x 102 mm |
Rated RPM: | 1400 |
