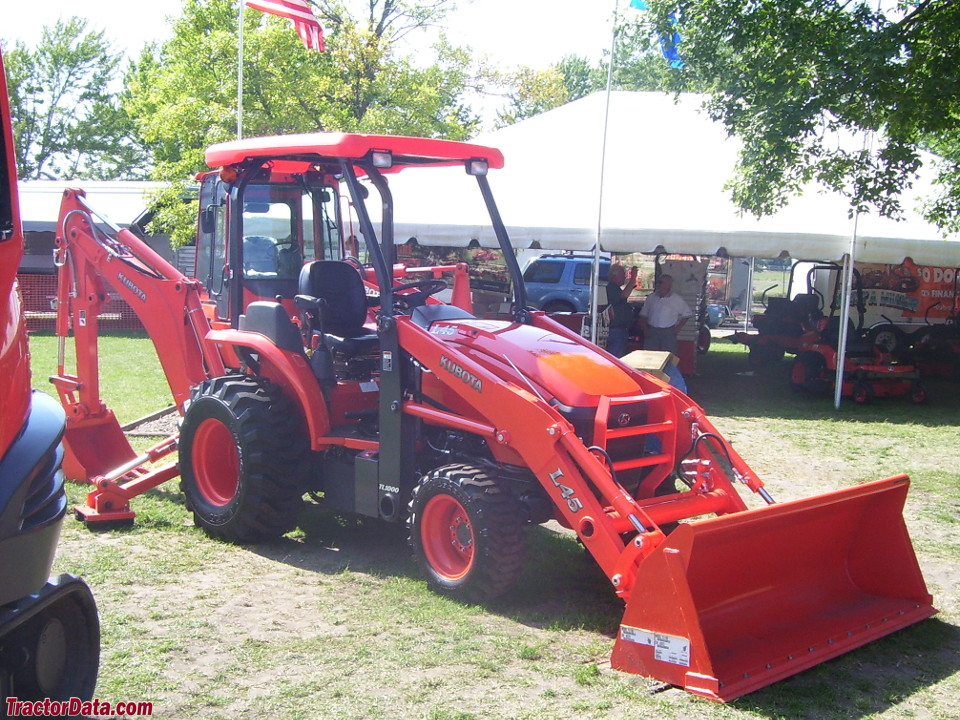

Kubota L45
|
|
| Production | |
| Manufacturer | Kubota |
| Backhoe loader tractor | |
| Original price | $43,672 (2011) |
| Kubota L45 Engine | |
| Kubota 2.2L 4-cyl diesel | |
 Engine details ... |
| Kubota L45 Transmission | |
| hydrostatic | |
 Transmission details ... |
| Kubota L45 Power | |
| Engine (gross) | 45 hp 33.6 kW |
| Engine (net) | 42.5 hp 31.7 kW |
| PTO (claimed) | 32 hp 23.9 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | rear standard |
| Steering | hydrostatic power |
| Mechanical wet disc brakes | |
| Four-post ROPS with FOPS canopy standard. | |
| Photos | |
 | |
 Kubota L45 photos... | |
| Capacity | |
| Fuel | 11.9 gal 45.0 L |
| Hydraulic system | 12.2 gal 46.2 L |
| Front axle | 7.4 qts 7.0 L |
| Hydraulics | |
| Type | open center |
| Capacity | 12.2 gal 46.2 L |
| Valves | 1 to 3 |
| Pump flow | 11.8 gpm (remotes) 44.7 lpm |
| 6.2 gpm (backhoe boom) 23.5 lpm | |
| Total flow | 25 gpm 94.6 lpm |
| Steering flow | 6.6 gpm 25.0 lpm |
| Tractor hitch | |
| Rear Type | I (optional) |
| Rear lift (at ends) | 3,850 lbs 1746 kg |
| Rear lift (at 24"/610mm) | 2,756 lbs 1250 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2590 |
| Dimensions & Tires | |
| Wheelbase | 72.5 inches 184 cm |
| Weight | 7,173 lbs 3253 kg |
| Front tire | 27x10.5-15 |
| Rear tire | 15x19.5 |
 Full dimensions and tires ... | |
| Backhoe & Loader | |
| Dig depth | 121 inches 307 cm |
| Dump angle | 44 inches 111 cm |
 Loader/Backhoe details ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 45 |
| Battery volts | 12 |
| Battery AH | 80 |
