John Deere 400

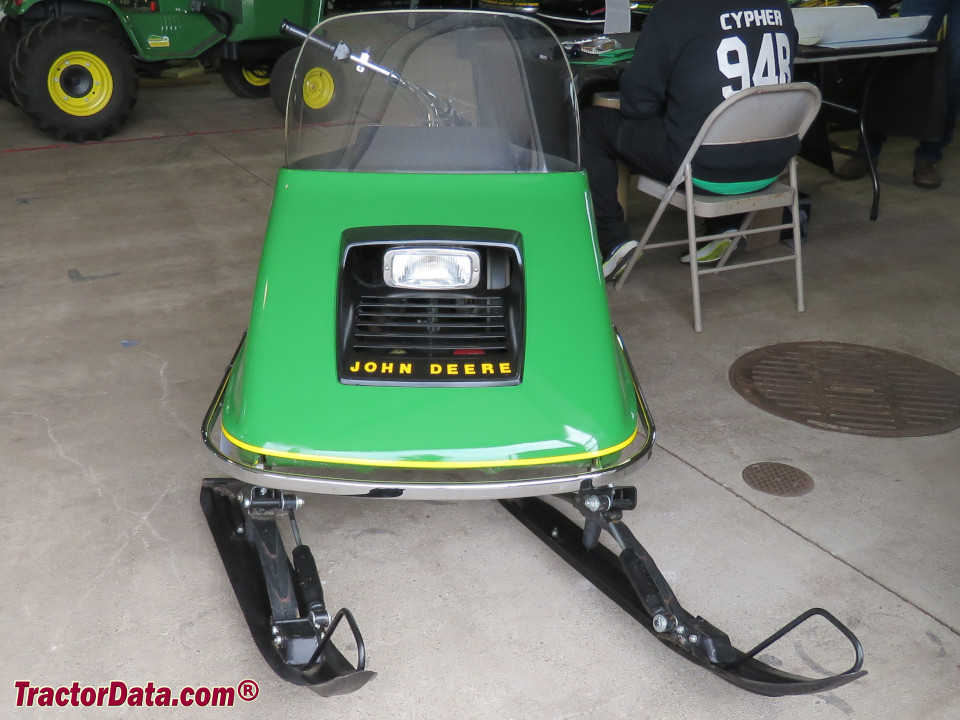

John Deere 400 tractor photo
1972 - 1977
Model year
Snowmobile
Series map:
400
500
28.0hp
36.0hp
Production
ManufacturerJohn Deere
Snowmobile
Built in Horicon, Wisconsin, USA
Original price was $1,200 in 1972
John Deere 400 Engine
Canadian Curtiss-Wright 339cc 2-cyl gasoline
Fuel tank5.5 gal
20.8 L
Engine details ...
John Deere 400 Power
Engine28 hp
20.9 kW
Mechanical
Tracked
Manual steering
Mechanical band brakes
Suspensionbogie wheel
Track and Dimensions
Weight380 lbs
172 kg
Length102.8 inches
261 cm
Width36.7 inches
93 cm
Height42 inches
106 cm
Track width15.5 inches
39 cm

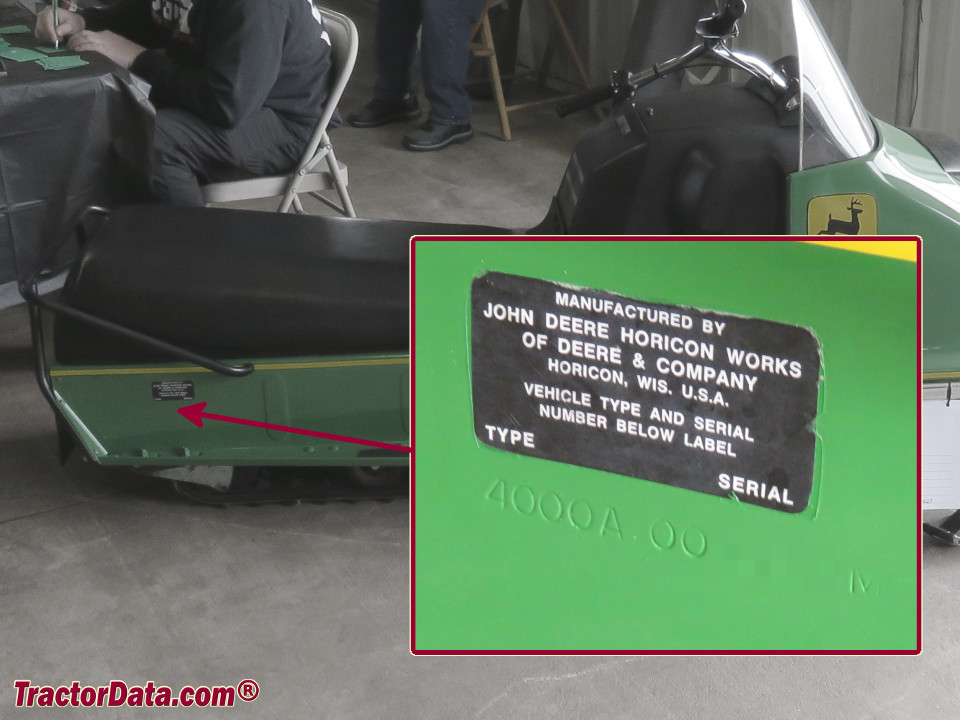

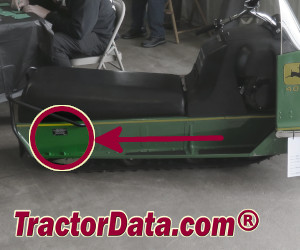

400 Serial Number Location
John Deere 400 serial number location
Serial number stamped on the rear right of the tunnel.
Electrical
Groundnegative
Battery volts12
References
400 references literature
Operator's Manual 400 and 500 Snowmobiles (OM-M63442) published in 1971
New John Deere Snowmobiles published in 1971
