Snapper 3317523BVE
|
|
| Production | |
| Manufacturer | Snapper (a part of Briggs & Stratton) |
| Riding lawn mower | |
| Built in McDonough, Georgia, USA | |
| Original price was $2,300 in 2009 | |
| Snapper 3317523BVE Engine | |
| 17.5HP Briggs & Stratton 501cc 1-cyl gasoline | |
| Fuel tank | 1.75 gal 6.6 L |
 Engine details ... | |
| Snapper 3317523BVE Transmission | |
| 5-speed friction disc | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
| No photos of the Snapper 3317523BVE are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual |
| Mid PTO Type | pulley |
| Dimensions & Tires | |
| Wheelbase | 46 inches 116 cm |
| Front tire | 11x4.00-4 |
| Rear tire | 16x6.50-8 |
 Full dimensions and tires ... | |
| Snapper 3317523BVE attachments | |
| 33" mid-mount mower deck | |
| blade | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |

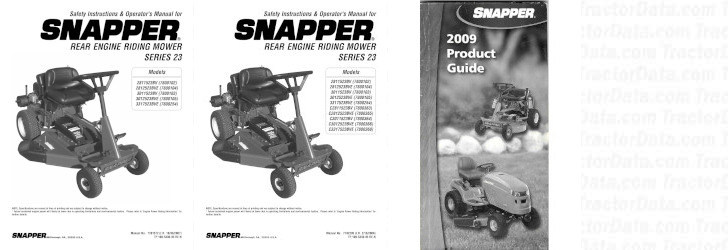

| References | |
 | |
| Operator's Manual Series 23 Rear Engine Riders (7101572) published in 2007 | |
| Operator's Manual Series 23 Rear Engine Riders (7102295) published in 2008 | |
| Product Guide published in 2009, by Snapper |
