Craftsman 917.25574
|
|
| Production | |
| Distributor | Craftsman (a part of Sears) |
| Manufacturer | Roper |
| Lawn tractor | |
| Original price was $1,500 in 1986 | |
| Craftsman 917.25574 Engine | |
| 12HP Tecumseh 357cc 1-cyl gasoline | |
 Engine details ... |
| Craftsman 917.25574 Transmission | |
| 6-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
| No photos of the Craftsman 917.25574 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual |
| Mid PTO Type | pulley |
| Dimensions & Tires | |
| Weight | 430 lbs 195 kg |
| Front tire | 15x6.00-6 |
| Rear tire | 18x9.50-8 |
 Full dimensions and tires ... | |
| Craftsman 917.25574 attachments | |
| 38" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |

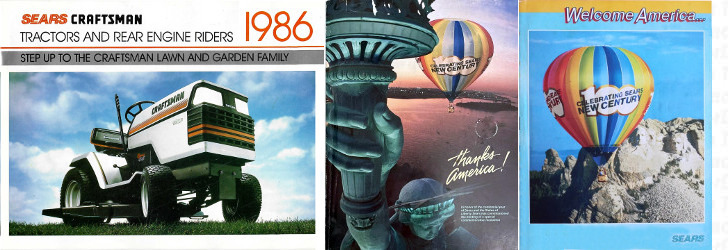

| Craftsman Tractors and Rear Engine Riders published in 1985, by Sears | |
| Fall/Winter Catalog published in 1986, by Sears | |
| Spring/Summer Catalog published in 1986, by Sears |
