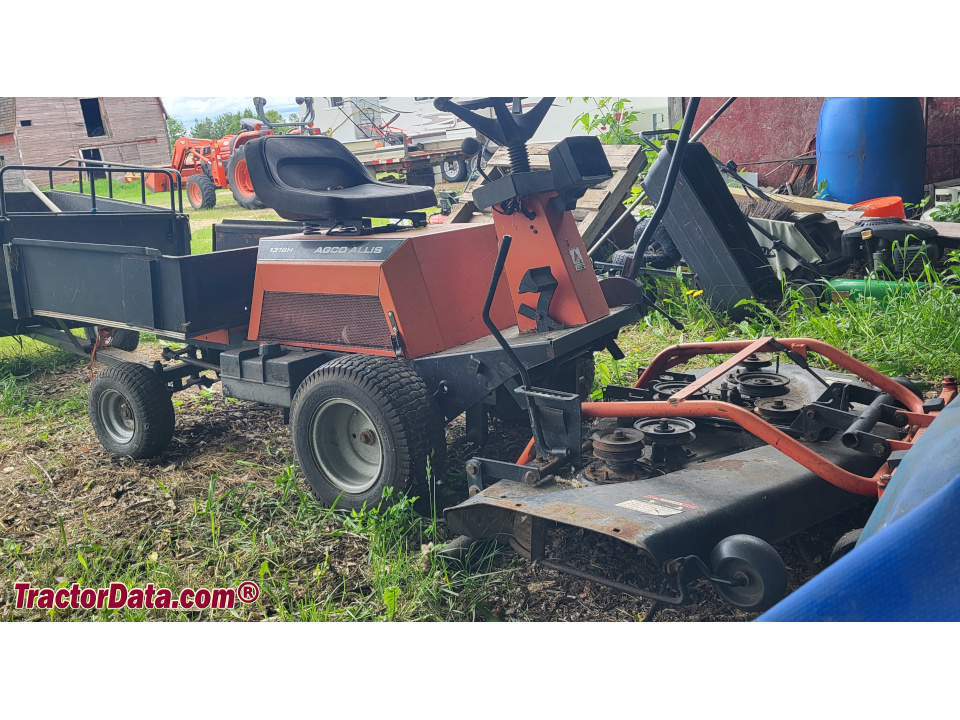

AGCO 1316H
| | 1990 - 1994 |
| 1300 Series | | Front-mount mower | | Simplicity built |
|
Series map:
1313H
1316H
12.5hp
16.0hp
Note: the AGCO model 1316H is the same as the Simplicity 16FCH48. The following data is from the 16FCH48 listing. |
| Production |
| Distributor | AGCO
|
| Manufacturer | Simplicity
|
| Front-mount mower |
| Original price | $3,899 (1990 )
|
| $4,500 (1993 )
|
| $4,600 (1994 )
|
| Variants |
| 16FCH48 | similar Simplicity model
|
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Mechanical band brakes |
| Open operator station. |
| Photos |
| No photos of the AGCO 1316H are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Power Take-off (PTO) |
| Front PTO | independent
|
| Clutch | electric
|
| Electrical |
| Ground | negative
|
| Charging amps | 16
|
| Battery CCA | 200
|
| Battery volts | 12
|
| References |
 |
| Operator's Manual 1300 Series (1707275) published in 1992 |
| Lawn & Garden Tractors published in 1993, by AGCO Allis |
| Lawn & Garden Tractors published in 1994, by AGCO Allis |
| 1994 Price List published in 1993, by Simplicity |
| Page information |
 |
| Copyright 2023 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on September 24, 2023 |
