Lawn Tractors > Allis Chalmers > 616

Allis Chalmers 616 Engine



Allis Chalmers 616 tractor photo
1972
Garden tractor
Simplicity built
Series map:
616
16.5hp
Engine Detail
Onan CCKA
gasoline
2-cylinder
air-cooled horizontal-shaft opposed-twin
Displacement816 cc
49.8 ci
Bore/Stroke3.25x3.00 inches
83 x 76 mm
Power (gross)16.5 hp
12.3 kW
Air cleanerpaper element
Compression7:1
Rated RPM3600
Starter volts12
Oil capacity3.5 qts
3.3 L

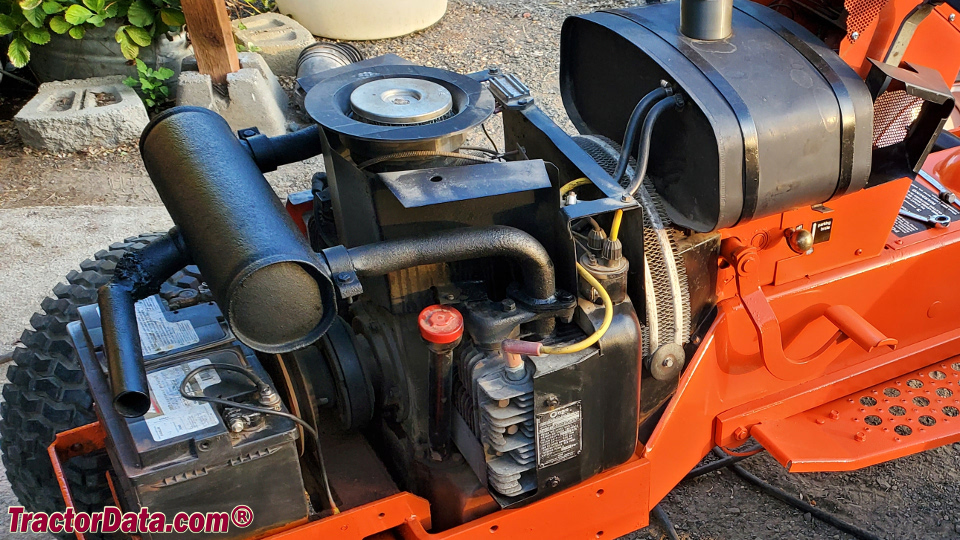

Allis Chalmers 616 Engine
Allis Chalmers 616 engine image
Image courtesy of Myles Schoolcraft
