Craftsman 917.27245

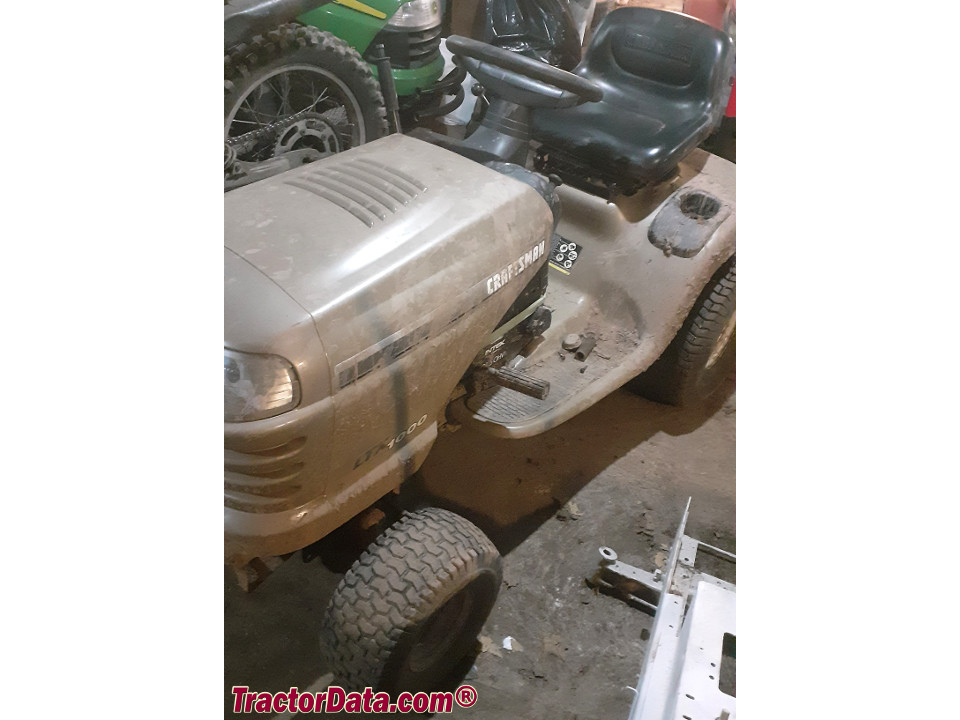

Craftsman 917.27245 lawn tractor photo
LTX 1000 Series
Lawn tractor
AYP built
DistributorCraftsman (a part of Sears)
Lawn tractor
Original price was $1,700 in 2002
Craftsman 917.27245 Engine
21.5HP Briggs & Stratton 656cc 2-cyl gasoline
Fuel tank3.5 gal
13.2 L
Engine details ...
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual idler pulley
Dimensions & Tires
Front tire15x6.00-6
Rear tire20x10.00-8
Full dimensions and tires ...
917.27245 Serial Numbers
917.27245 Serial Location

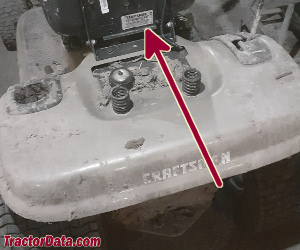

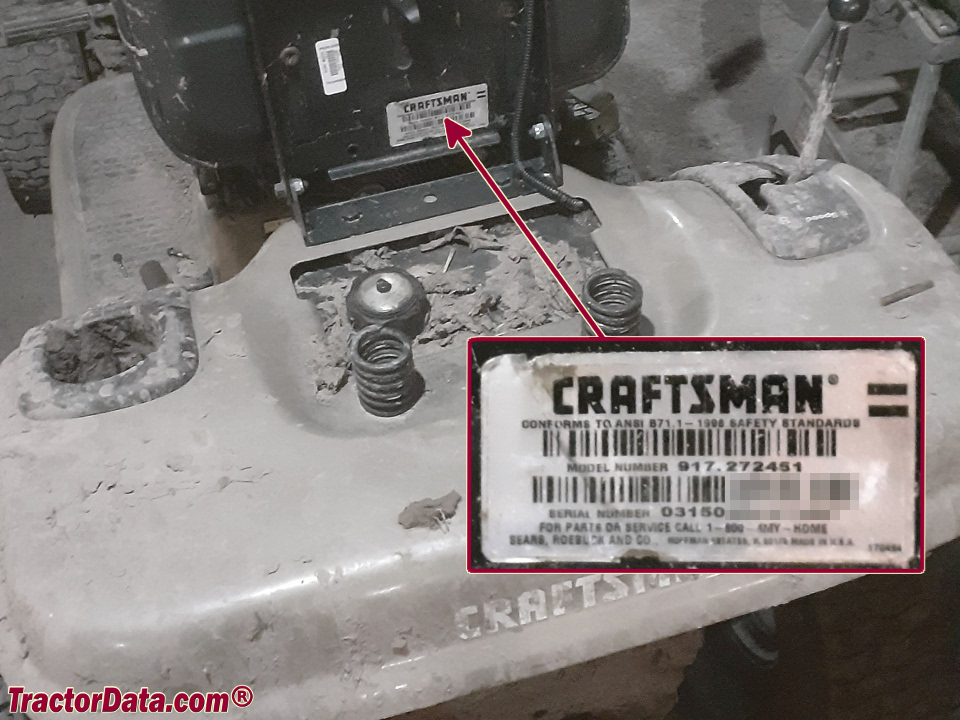

Craftsman 917.27245 serial number location
Serial number decal on the underside of the seat mounting pan.
Charging amps3 (battery)
 5 (lights)
Battery CCA230
Battery volts12
Battery AH28
Battery GroupU1R
917.27245 references literature
Owner's Manual Lawn Tractor 917.272450 (18355) published in 2002
