Woods M2560K
|
|
| Production | |
| Manufacturer | Woods |
| Zero-turn mower | |
| Woods M2560K Engine | |
| 25HP Kawasaki gasoline | |
| Fuel tank | 11 gal 41.6 L |
 Engine details ... | |
| Woods M2560K Transmission | |
| hydrostatic | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Power steering | |
| Open operator station. |

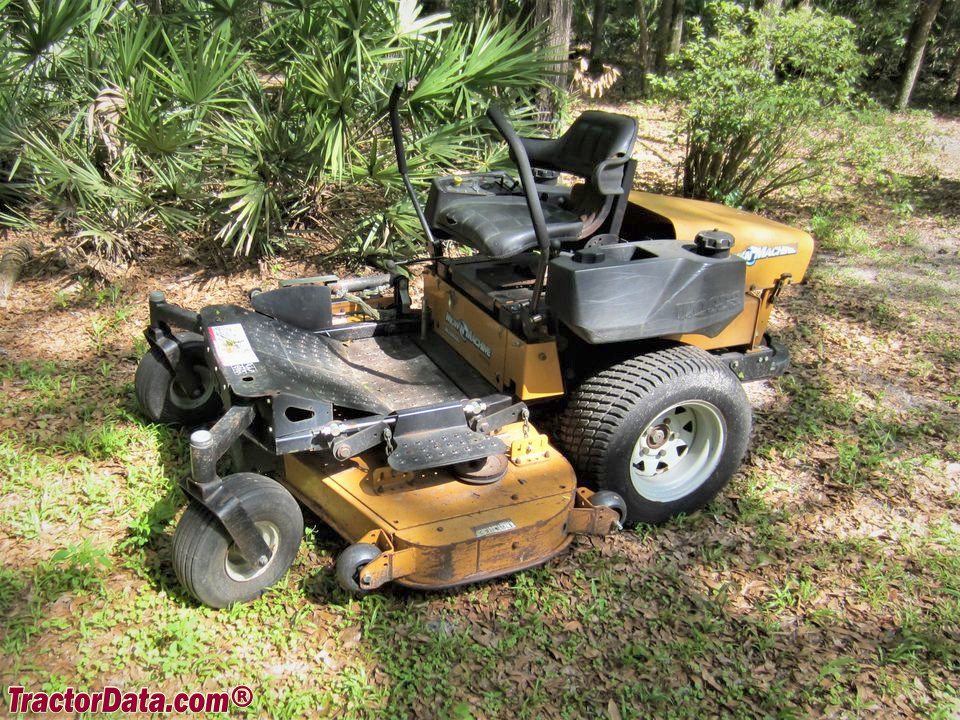

| Photos | |
 | |
 Woods M2560K photos... | |
| Dimensions & Tires | |
| Weight | 1125 lbs 510 kg |
| Front tire | 15x5-6 |
| Rear tire | 23x10.5-12 |
 Full dimensions and tires ... | |
| Woods M2560K attachments | |
| 60" mid-mount mower deck | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Mow'n Machine M-Series F-Series published in 2003, by Woods | |
| Dare To Compare M-Series published in 2003, by Woods |
